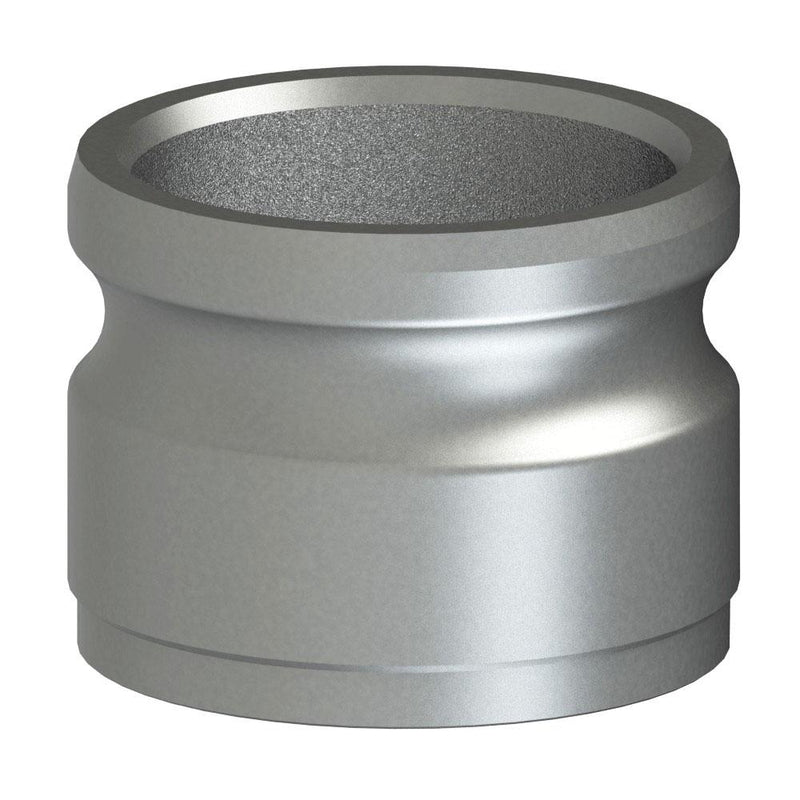

64600110 (E05AWB) by PT-Coupling | Cam & Groove Adapter | Type AWB | 1/2" Adapter x Butt Weld for .065 Tube | 316 Stainless Steel

Name: 64600110 (E05AWB) by PT-Coupling | Cam & Groove Adapter | Type AWB | 1/2" Adapter x Butt Weld for .065 Tube | 316 Stainless Steel
Brand: PT-Coupling
SKU: 64600110 PT-Coupling
Price: 58.97 USD
Availability: InStock

Save $34.81

$93.78

$93.78 - $93.78

$93.78

$58.97

$58.97 - $58.97

$58.97

PT Coupling
Cam & Groove (Camlock) Adapter | Type AWB | Adapter x Butt Weld for .065 Tube | 316 Stainless Steel

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 64600110 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Other
Ends Configuration:	1/2in Male Cam & Groove, 1/2in Weld End
Material(s):	316 Stainless Steel

Features & Applications:
Made in the USA


Part Name	Item #	Size	Overall Length (A)	Inside Diameter (B)	Max. Allowable Working Press. (PSI)*
E05AWB	64600110	1/2"	1.43"	0.53"	250 PSI
07AWB	64600714	3/4"	1.40"	0.75"	250 PSI
10AWB	64601012	1"	1.74"	0.88"	250 PSI
15AWB	64601514	1-1/2"	2.06"	1.25"	250 PSI
20AWB	64602013	2"	2.50"	1.75"	250 PSI
25AWB	64602514	2-1/2"	2.44"	2.14"	200 PSI
30AWB	64603014	3"	2.75"	2.81"	200 PSI
40AWB	64604014	4"	2.88"	3.75"	150 PSI
50AWB	64605015	5"	2.70"	4.75"	75 PSI
60AWB	64606014	6"	3.00"	5.84"	75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
