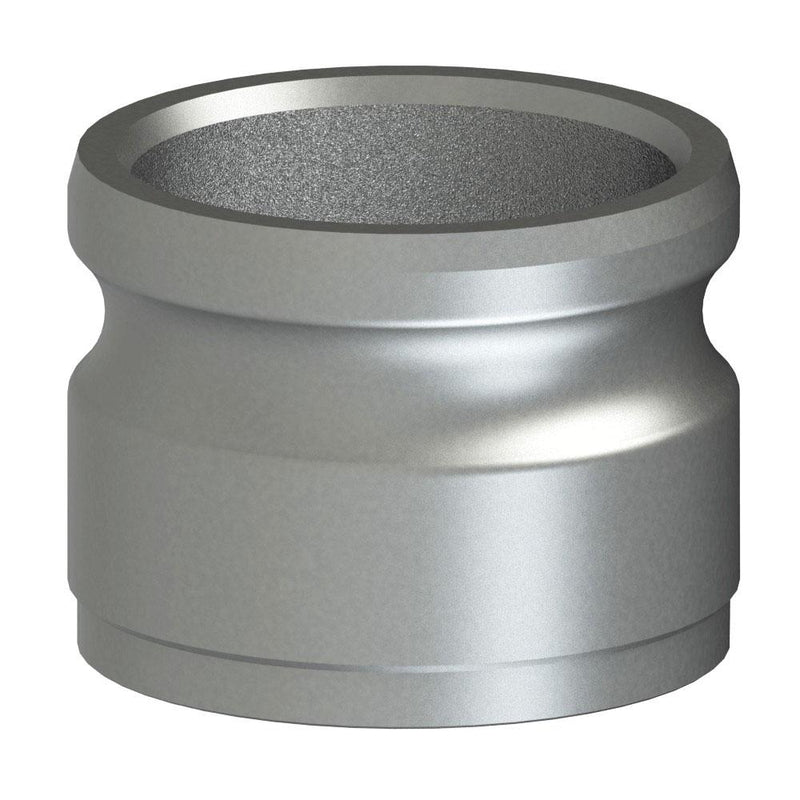

64600112 (E05AWB) by PT-Coupling | Cam & Groove Adapter | Type AWB | 1/2" Adapter x Butt Weld for Schedule 40 Pipe | 316 Stainless Steel

Name: 64600112 (E05AWB) by PT-Coupling | Cam & Groove Adapter | Type AWB | 1/2" Adapter x Butt Weld for Schedule 40 Pipe | 316 Stainless Steel
Brand: PT-Coupling
SKU: 64600112 PT-Coupling
Price: 60.47 USD
Availability: InStock

Save $35.68

$96.15

$96.15 - $96.15

$96.15

$60.47

$60.47 - $60.47

$60.47

PT Coupling
Cam & Groove (Camlock) Adapter | Type AWB | Adapter x Butt Weld for Schedule 40 Pipe | 316 Stainless Steel

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 64600112 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Other
Ends Configuration:	1/2in Male Cam & Groove, 1/2in Weld End
Material(s):	316 Stainless Steel

Features & Applications:
Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass. Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants. Made in the USA


Part Name	Item #	Size	Overall Length (A)	Inside Diameter (B)	Max. Allowable Working Press. (PSI)*
E05AWB	64600112	1/2"	1.43"	0.53"	250 PSI
07AWB	64600712	3/4"	1.40"	0.75"	250 PSI
10AWB	64601016	1"	1.74"	0.88"	250 PSI
12AWB	64601211	1-1/4"	1.99"	1.06"	250 PSI
15AWB	64601512	1-1/2"	2.06"	1.25"	250 PSI
20AWB	64602011	2"	2.50"	1.75"	250 PSI
25AWB	64602515	2-1/2"	2.44"	2.14"	200 PSI
30AWB	64603011	3"	2.75"	2.81"	200 PSI
40AWB	64604017	4"	2.88"	3.75"	150 PSI
50AWB	64605012	5"	2.70"	4.75"	75 PSI
60AWB	64606011	6"	3.00"	5.84"	75 PSI
80AWB	64608026	8"	5.90"	7.80"	50 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
