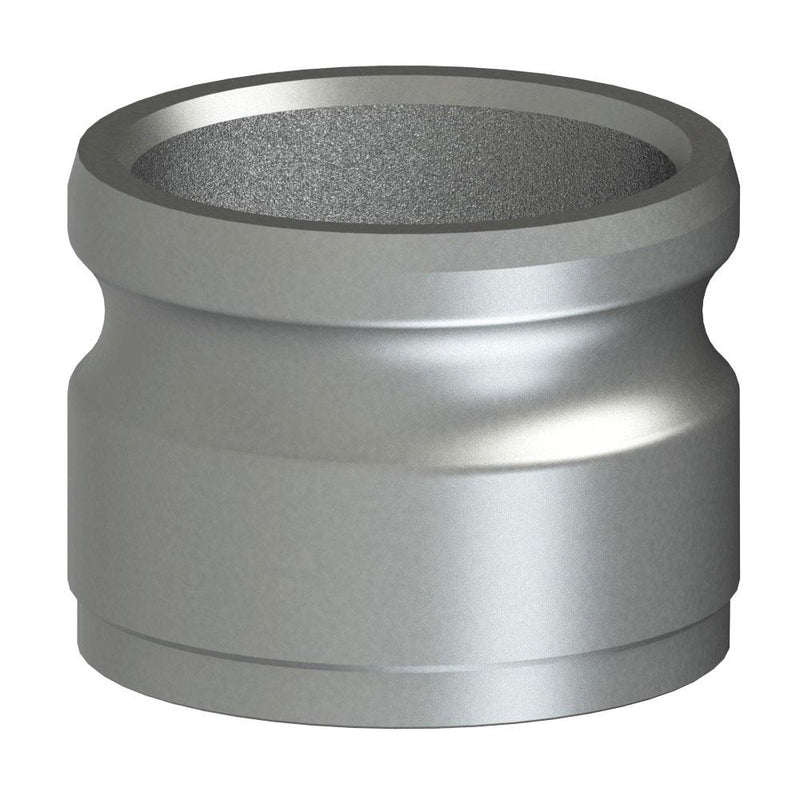

64601016 (10AWB) by PT-Coupling | Cam & Groove Adapter | Type AWB | 1" Adapter x Butt Weld for Schedule 40 Pipe | 316 Stainless Steel

64601016 (10AWB) by PT-Coupling | Cam & Groove Adapter | Type AWB | 1" Adapter x Butt Weld for Schedule 40 Pipe | 316 Stainless Steel

Save $36.85 Save $36.85
$99.25
$99.25 - $99.25
$99.25
$62.40
$62.40 - $62.40
$62.40

PT Coupling
Cam & Groove (Camlock) Adapter | Type AWB | Adapter x Butt Weld for Schedule 40 Pipe | 316 Stainless Steel

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 64601016 PT-Coupling
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 1in Male Cam & Groove, 1in Weld End
Material(s): 316 Stainless Steel
Features & Applications:
  • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
  • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • Made in the USA
Part
Name		 Item # Size Overall
Length
(A)		 Inside
Diameter
(B)		 Max. Allowable
Working Press.
(PSI)*
E05AWB 64600112 1/2" 1.43" 0.53" 250 PSI
07AWB 64600712 3/4" 1.40" 0.75" 250 PSI
10AWB 64601016 1" 1.74" 0.88" 250 PSI
12AWB 64601211 1-1/4" 1.99" 1.06" 250 PSI
15AWB 64601512 1-1/2" 2.06" 1.25" 250 PSI
20AWB 64602011 2" 2.50" 1.75" 250 PSI
25AWB 64602515 2-1/2" 2.44" 2.14" 200 PSI
30AWB 64603011 3" 2.75" 2.81" 200 PSI
40AWB 64604017 4" 2.88" 3.75" 150 PSI
50AWB 64605012 5" 2.70" 4.75" 75 PSI
60AWB 64606011 6" 3.00" 5.84" 75 PSI
80AWB 64608026 8" 5.90" 7.80" 50 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
