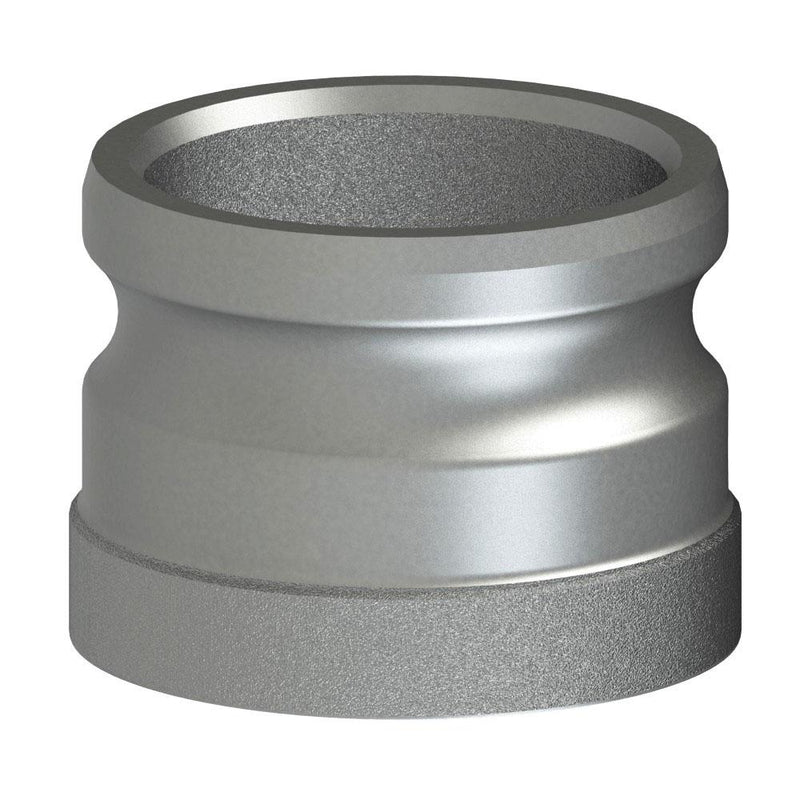

64601504 (15AWS) by PT-Coupling | Cam & Groove Adapter | Type AWS | 1-1/2" Adapter x Socket Weld for Tube | 316 Stainless Steel

Name: 64601504 (15AWS) by PT-Coupling | Cam & Groove Adapter | Type AWS | 1-1/2" Adapter x Socket Weld for Tube | 316 Stainless Steel
Brand: PT-Coupling
SKU: 64601504 PT-Coupling
Price: 82.97 USD
Availability: InStock

Save $48.98

$131.95

$131.95 - $131.95

$131.95

$82.97

$82.97 - $82.97

$82.97

PT Coupling
Cam & Groove (Camlock) Adapter | Type AWS | Adapter x Socket Weld for Tube | 316 Stainless Steel

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 64601504 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Other
Ends Configuration:	1-1/2in Male Cam & Groove, 1-1/2in Weld End
Material(s):	316 Stainless Steel

Features & Applications:
Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass. Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants. Made in the USA


Part Name	Item #	Size	Socket Depth (A)	Outside Diameter (B)	Inside Diameter (C)	Overall Length (D)	Socket Diameter (E)	Max. Allowable Working Press. (PSI)*
15AWS	64601504	1-1/2"	0.40"	2.25"	1.35"	2.13"	1.52"	250 PSI
20AWS	64602002	2"	0.40"	2.74"	1.81"	2.50"	2.02"	250 PSI
30AWS	64603005	3"	0.40"	3.75"	2.81"	2.75"	3.02"	200 PSI
40AWS	64604004	4"	0.60"	5.01"	3.00"	2.97"	4.03"	150 PSI
50AWS	64605004	5"	0.60"	6.00"	4.78"	2.94"	5.03"	75 PSI
60AWS	64606001	6"	0.60"	7.00"	5.84"	2.90"	6.03"	75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
