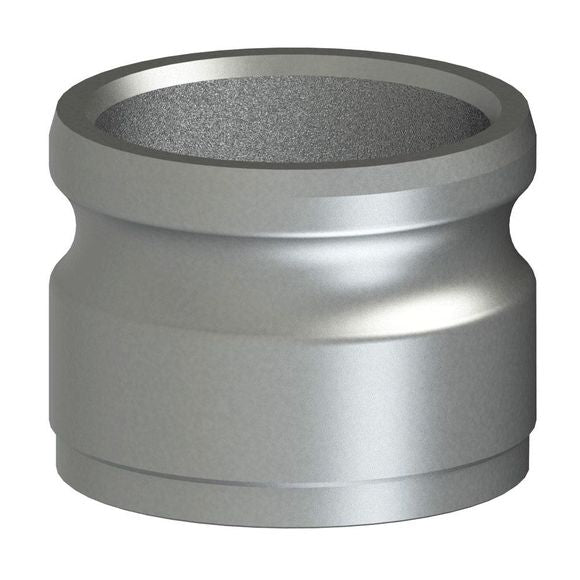

64601515 (15AWB) by PT-Coupling | Cam & Groove Adapter | Type AWB | 1-1/2" Adapter x Butt Weld for Schedule 10 Pipe | 316 Stainless Steel

Name: 64601515 (15AWB) by PT-Coupling | Cam & Groove Adapter | Type AWB | 1-1/2" Adapter x Butt Weld for Schedule 10 Pipe | 316 Stainless Steel
Brand: PT-Coupling
SKU: 64601515 PT-Coupling
Price: 82.36 USD
Availability: InStock

Save $48.62

$130.98

$130.98 - $130.98

$130.98

$82.36

$82.36 - $82.36

$82.36

PT Coupling
Cam & Groove (Camlock) Adapter | Type AWB | Adapter x Butt Weld for Schedule 10 Pipe | 316 Stainless Steel

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 64601515 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Other
Ends Configuration:	1-1/2in Male Cam & Groove, 1-1/2in Weld End
Material(s):	316 Stainless Steel

Features & Applications:
Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass. Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants. Made in the USA


Part Name	Item #	Size	Overall Length (A)	Inside Diameter (B)	Max. Allowable Working Press. (PSI)*
E05AWB	64600113	1/2"	1.43"	0.53"	250 PSI
07AWB	64600711	3/4"	1.40"	0.75"	250 PSI
10AWB	64601011	1"	1.74"	0.88"	250 PSI
15AWB	64601515	1-1/2"	2.06"	1.25"	250 PSI
20AWB	64602012	2"	2.50"	1.75"	250 PSI
25AWB	64602513	2-1/2"	2.44"	2.14"	200 PSI
30AWB	64603012	3"	2.75"	2.81"	200 PSI
40AWB	64604012	4"	2.88"	3.75"	150 PSI
60AWB	64606013	6"	3.00"	5.84"	75 PSI
80AWB	64608028	8"	5.90"	7.80"	50 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
