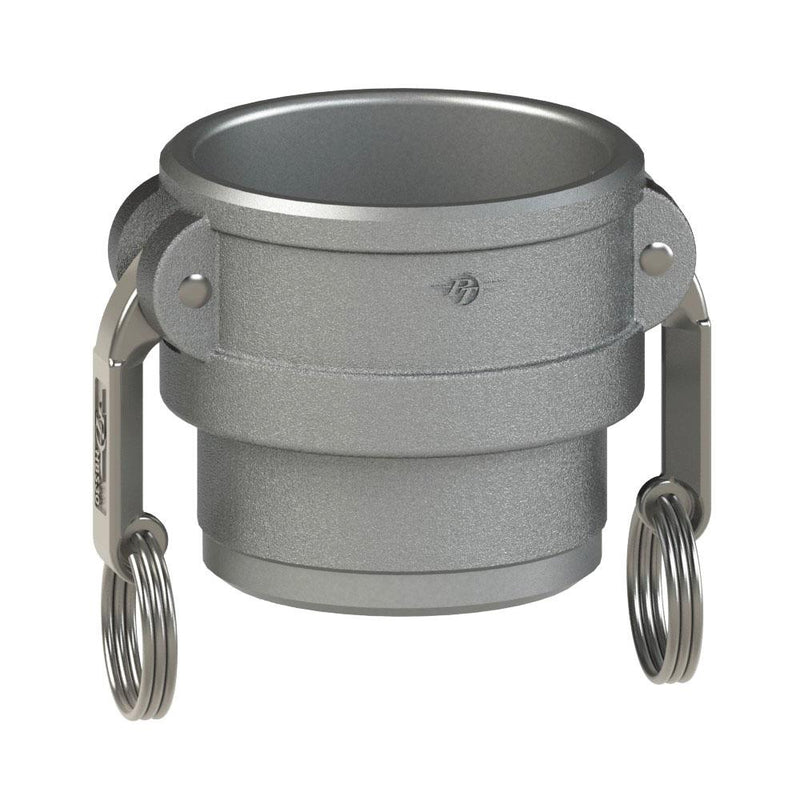

64620110 (E05DWB) by PT-Coupling | Cam & Groove Adapter | Type DWB | 1/2" Coupler x Butt Weld for .065 Tube | 316 Stainless Steel

64620110 (E05DWB) by PT-Coupling | Cam & Groove Adapter | Type DWB | 1/2" Coupler x Butt Weld for .065 Tube | 316 Stainless Steel

Save $17.25 Save $17.25
$46.48
$46.48 - $46.48
$46.48
$29.23
$29.23 - $29.23
$29.23

PT Coupling
Cam & Groove (Camlock) Adapter | Type DWB | Coupler x Butt Weld for .065 Tube | 316 Stainless Steel

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 64620110 PT-Coupling
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 1/2in Female Cam & Groove, 1/2in Weld End
Material(s): 316 Stainless Steel
Features & Applications:
  • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
  • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • Made in the USA
Part
Name		 Item # Size O. D. with
Cam Arms
Extended
(A)		 Outside
Diameter
(B)		 Inside
Diameter
(C)		 Overall
Length
(D)		 Max. Allowable
Working Press.
(PSI)*
E05DWB 64620110 1/2" 4.21" 1.82" 0.56" 2.00" 250 PSI
07DWB 64620712 3/4" 4.51" 2.11" 0.78" 2.00" 250 PSI
10DWB 64621014 1" 5.10" 2.44" 0.97" 2.51" 250 PSI
15DWB 64621516 1-1/2" 7.16" 3.56" 1.54" 2.81" 250 PSI
20DWB 64622016 2" 7.54" 3.94" 1.75" 3.09" 250 PSI
25DWB 64622514 2-1/2" 8.03" 4.43" 2.38" 3.63" 200 PSI
30DWB 64623017 3" 9.56" 5.46" 2.83" 3.82" 200 PSI
40DWB 64624016 4" 10.66" 6.56" 3.50" 4.00" 150 PSI
60DWB 64626019 6" 16.26" 10.16" 5.50" 4.54" 75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
