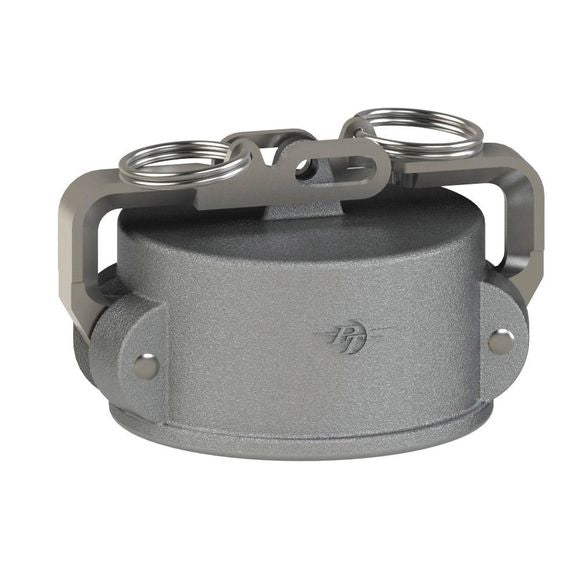

64800025 (25VL) by PT-Coupling | Cam & Groove Dust Cap | with Locking Cam Arms | Type VL | 2-1/2" Coupler | 316 Stainless Steel

Save $97.28

$262.05

$262.05 - $262.05

$262.05

$164.77

$164.77 - $164.77

$164.77

PT Coupling
Cam and Groove (Camlock) Dust Cap with Locking Cam Arms | Type VL | 316 Stainless Steel

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 64800025 PT-Coupling
Cam Type:	Type DC
Ends Configuration:	2-1/2in Female Cam & Groove
Material(s):	316 Stainless Steel

Overview:
PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
Features & Applications:
Chain Lug diameter is .25" or greater. Priced with 316 stainless cam arms and 300 series pin and ring. 1-1/2" and 2" dust caps with Stainless cam arms are priced with pull rings. 2-1/2" and larger dust caps with Stainless cam arms are priced without pull rings. Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass. Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants. Couplings not interchangeable in the industry are sizes 8" through 12". Made in the USA


Part Name	Item #	Coupler Size	O. D. with Cam Arms Extended (A)	Outside Diameter (B)	Overall Length (C)	Chain Lug Extension (G)	Engagement Length	Max. Allowable Working Press. (PSI)*
20VL	64800020	2"	7.54"	3.94"	2.25"	0.76"	1.75"	250 PSI
25VL	64800025	2-1/2"	8.03"	4.43"	2.28"	0.90"	1.75"	200 PSI
30VL	64800030	3"	9.56"	5.46"	2.27"	1.03"	1.84"	200 PSI
40VL	64800040	4"	10.66"	6.56"	2.34"	0.99"	1.87"	150 PSI
50VL	64800050	5"	11.67"	7.57"	2.34"	1.15"	1.97"	75 PSI
60VL	64800060	6"	16.26"	10.16"	2.76"	1.14"	2.19"	75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
