64P1SO15 by Dixon Valve | Holedall® External Swage | Fixed Flange Assembly | 4" Hose ID | Hose OD: From 4-40/64" to 4-44/64" | Carbon Steel

Save $30.49

$274.40

$274.40 - $274.40

$274.40

$243.91

$243.91 - $243.91

$243.91

Dixon Valve

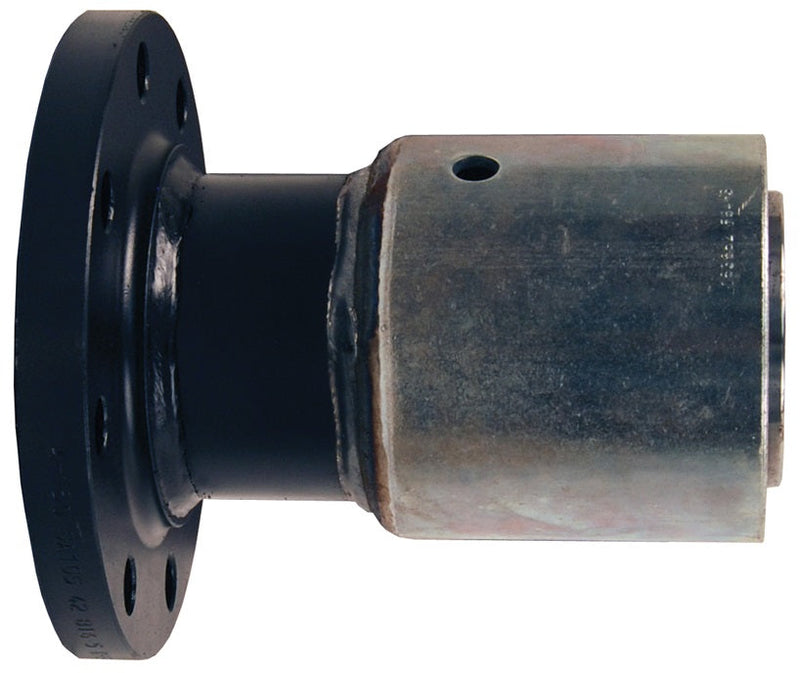

Holedall® Special External Swage Stem | Fixed Flange Assembly x Hose Barb

Quantity

Specifications for Variant SKU: 64P1SO15 Dixon
Brand:	Holedall
Shape (Orientation):	Straight
Ends Configuration:	4in 150# Flange, 4in Hose Barb
Material(s):	Carbon Steel

Features:
150# ASA flange drilling. The Holedall coupling provides long-lasting efficiency and safety. The coupling system requires no bolts and results in a clean coupling with no protrusions.
How It Works:
The hydraulic swaging of the coupling to the hose is accomplished by pushing the ferrule through a die which reduces the ferrule OD, thus providing a 360° uninterrupted compression band around the hose. A hydraulic ram is the only piece of machinery necessary to accomplish the coupling. Couplings can be swaged or crimped.
Safety Notes:
Dixon Holedall stems and ferrules are specifically designed to be used together as a coupling system. Due to differences in dimensions and tolerances, for safety reasons, do not use other manufacturer's stems or ferrules with Dixon Holedall products. Do not use a wrench or vice on ferrule. Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure. Holedall fittings are not to be used with cable reinforced high-pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations. Consult Dixon for recommendations on usage. Externally swaged Holedall couplings, to perform satisfactorily, must be applied properly in accordance with Dixon's assembly procedures, using correct die and ferrule for that. particular hose end OD. Dixon's Die and Ferrule Recommendation Guide is to be used to select correct dies and ferrules. Consult Dixon if you do not have an updated Die and Ferrule Recommendation Guide. Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting. The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure. Media being transported through the hose should be compatible with the stem material. Compatibility of ferrule material with the environment in which it will be used is recommended. Consult the Compatibility Chart or contact Dixon for material compatibility. For applications other than the ones list, please consult Dixon.

Carbon Steel Part Number	316 Stainless Steel Part Number	Hose ID	Hose OD Range
Carbon Steel Part Number	316 Stainless Steel Part Number	Hose ID	From	To
32P1SO15	R32P1SOR15	2"	2-28/64"	2-40/64"
32P2SO15	R32P2SOR15	2"	2-41/64"	2-48/64"
32P3SO15	R32P3SOR15	2"	2-49/64"	2-56/64"
48P1SO15	R48P1SOR15	3"	3-30/64"	3-40/64"
48P2SO15	R48P2SOR15	3"	3-41/64"	3-48/64"
48P3SO15	R48P3SOR15	3"	3-49/64"	3-56/64"
64P1SO15	R64P1SOR15	4"	4-40/64"	4-44/64"
64P2SO15	R64P2SOR15	4"	4-45/64"	4-52/64"
64P3SO15	R64P3SOR15	4"	4-53/64"	4-60/64"
96P1SO15	-	6"	7"	7-4/64"
96P2SO15	-	6"	7-5/64"	7-12/64"
96P3SO15	-	6"	7-13/64"	7-20/64"
128P1SO15	-	8"	9-20/64"	9-24/64"
