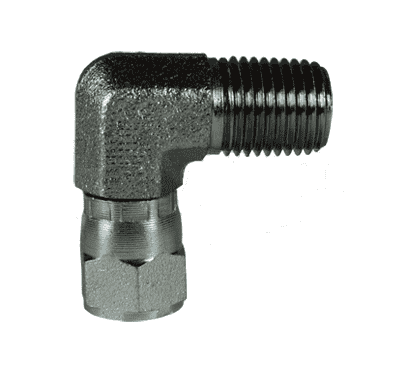

6501-6-4 Dixon Zinc Plated Steel 9/16"-18 Female 37 deg. JIC Swivel x 90 deg. 1/4"-18 Male NPTF

6501-6-4 Dixon Valve Zinc Plated Steel 9/16"-18 Female 37 deg. JIC Swivel x 90 deg. 1/4"-18 Male NPTF

Save $0.37 Save $0.37
$3.66
$3.66 - $3.66
$3.66
$3.29
$3.29 - $3.29
$3.29

SAE / JIC Fittings - Female 37 deg. JIC Swivel x 90 deg. Male NPTF - Zinc Plated Steel
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 6501-6-4 Dixon
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Female JIC, 1/4in Male NPTF
Material(s): Zink-Plated Steel
Features:
  • N/A
Part Number SAE 37 deg. Female Swivel Male NPTF Pipe Working Pressure Weight (Lbs.)
6501-4-2 7/16"-20 1/8"-27 4500 PSI 0.0420
6501-4-4 7/16"-20 1/4"-18 4500 PSI 0.0790
6501-5-2 1/2"-20 1/8"-27 4000 PSI 0.0800
6501-6-4 9/16"-18 1/4"-18 4000 PSI 0.0800
6501-6-6 9/16"-18 3/8"-18 4000 PSI 0.1070
6501-8-6 3/4"-16 3/8"-18 4000 PSI 0.1300
6501-8-8 3/4"-16 1/2"-14 3000 PSI 0.2000
6501-10-8 7/8"-14 1/2"-14 3000 PSI 0.2470
6501-12-12 1-1/16"-12 3/4"-14 2500 PSI 0.3500
6501-14-12 1-3/16"-12 3/4"-14 2500 PSI 0.4700
6501-16-16 1-5/16"-12 1"-11-1/2 2000 PSI 0.5350
6501-20-20 1-5/8"-12 1-1/4"-11-1/2 1150 PSI 0.7660
6501-24-24 1-7/8"-12 1-1/2"-11-1/2 1000 PSI 0.8000
6501-32-32 2-1/2"-12 2"-11-1/2 1000 PSI 0.9100
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
