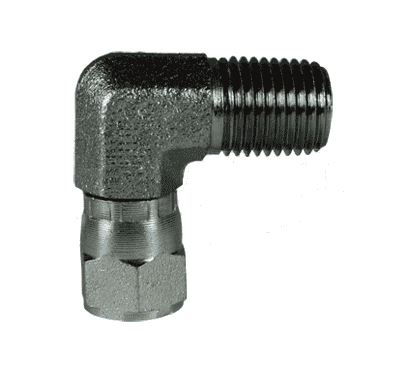

6501-8-6 Dixon Zinc Plated Steel 3/4"-16 Female 37 deg. JIC Swivel x 90 deg. 3/8"-18 Male NPTF

6501-8-6 Dixon Valve Zinc Plated Steel 3/4"-16 Female 37 deg. JIC Swivel x 90 deg. 3/8"-18 Male NPTF

Save $3.83 Save $3.83
$9.58
$9.58 - $9.58
$9.58
$5.75
$5.75 - $5.75
$5.75

SAE / JIC Fittings - Female 37 deg. JIC Swivel x 90 deg. Male NPTF - Zinc Plated Steel
Specifications for Variant SKU: 6501-8-6 Dixon
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Female JIC, 3/8in Male NPTF
Material(s): Zink-Plated Steel
Features:
  • N/A
Part Number SAE 37 deg. Female Swivel Male NPTF Pipe Working Pressure Weight (Lbs.)
6501-4-2 7/16"-20 1/8"-27 4500 PSI 0.0420
6501-4-4 7/16"-20 1/4"-18 4500 PSI 0.0790
6501-5-2 1/2"-20 1/8"-27 4000 PSI 0.0800
6501-6-4 9/16"-18 1/4"-18 4000 PSI 0.0800
6501-6-6 9/16"-18 3/8"-18 4000 PSI 0.1070
6501-8-6 3/4"-16 3/8"-18 4000 PSI 0.1300
6501-8-8 3/4"-16 1/2"-14 3000 PSI 0.2000
6501-10-8 7/8"-14 1/2"-14 3000 PSI 0.2470
6501-12-12 1-1/16"-12 3/4"-14 2500 PSI 0.3500
6501-14-12 1-3/16"-12 3/4"-14 2500 PSI 0.4700
6501-16-16 1-5/16"-12 1"-11-1/2 2000 PSI 0.5350
6501-20-20 1-5/8"-12 1-1/4"-11-1/2 1150 PSI 0.7660
6501-24-24 1-7/8"-12 1-1/2"-11-1/2 1000 PSI 0.8000
6501-32-32 2-1/2"-12 2"-11-1/2 1000 PSI 0.9100

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
