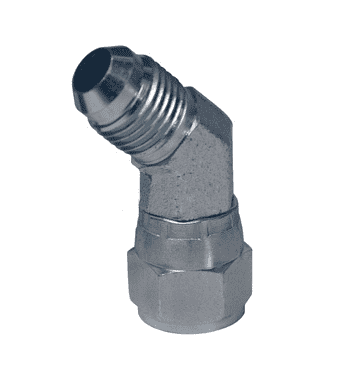

6502-12 Dixon Zinc Plated Steel 45 deg. Swivel Elbow: 1-1/16"-12 Male 37 deg. JIC Flare x 1-1/16"-12 Female 37 deg. JIC Swivel

6502-12 Dixon Valve Zinc Plated Steel 45 deg. Swivel Elbow: 1-1/16"-12 Male 37 deg. JIC Flare x 1-1/16"-12 Female 37 deg. JIC Swivel

Save $1.05 Save $1.05
$9.45
$9.45 - $9.45
$9.45
$8.40
$8.40 - $8.40
$8.40

SAE / JIC Fittings - 45 deg. Swivel Elbow: Male 37 deg. JIC Flare x Female 37 deg. JIC Swivel - Zinc Plated Steel
Specifications for Variant SKU: 6502-12 Dixon
Shape (Orientation): 45 Degree
Ends Configuration: 3/4in Male JIC, 3/4in Female JIC
Material(s): Zink-Plated Steel
Features:
  • N/A
Part Number SAE 37 deg. JIC Male SAE 37 deg. JIC Female Swivel Working Pressure Weight (Lbs.)
6502-4 7/16"-20 7/16"-20 4500 PSI N/A
6502-6 9/16"-18 9/16"-18 4000 PSI 0.0900
6502-8 3/4"-16 3/4"-16 4000 PSI 0.1800
6502-10 7/8"-14 7/8"-14 3000 PSI N/A
6502-12 1-1/16"-12 1-1/16"-12 3000 PSI 0.3200
6502-16 1-5/16"-12 1-5/16"-12 2500 PSI 0.7000
6502-20 1-5/8"-12 1-5/8"-12 2000 PSI N/A
