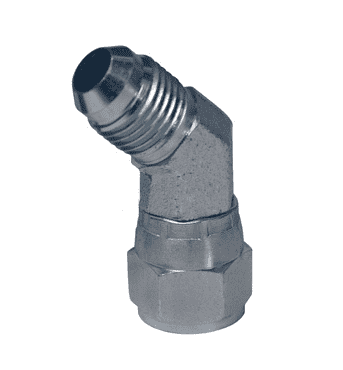

6502-6 Dixon Zinc Plated Steel 45 deg. Swivel Elbow: 9/16"-18 Male 37 deg. JIC Flare x 9/16"-18 Female 37 deg. JIC Swivel

6502-6 Dixon Valve Zinc Plated Steel 45 deg. Swivel Elbow: 9/16"-18 Male 37 deg. JIC Flare x 9/16"-18 Female 37 deg. JIC Swivel

Save $0.40 Save $0.40
$3.60
$3.60 - $3.60
$3.60
$3.20
$3.20 - $3.20
$3.20

SAE / JIC Fittings - 45 deg. Swivel Elbow: Male 37 deg. JIC Flare x Female 37 deg. JIC Swivel - Zinc Plated Steel
Specifications for Variant SKU: 6502-6 Dixon
Shape (Orientation): 45 Degree
Ends Configuration: 3/8in Male JIC, 3/8in Female JIC
Material(s): Zink-Plated Steel
Features:
  • N/A
Part Number SAE 37 deg. JIC Male SAE 37 deg. JIC Female Swivel Working Pressure Weight (Lbs.)
6502-4 7/16"-20 7/16"-20 4500 PSI N/A
6502-6 9/16"-18 9/16"-18 4000 PSI 0.0900
6502-8 3/4"-16 3/4"-16 4000 PSI 0.1800
6502-10 7/8"-14 7/8"-14 3000 PSI N/A
6502-12 1-1/16"-12 1-1/16"-12 3000 PSI 0.3200
6502-16 1-5/16"-12 1-5/16"-12 2500 PSI 0.7000
6502-20 1-5/8"-12 1-5/8"-12 2000 PSI N/A
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
