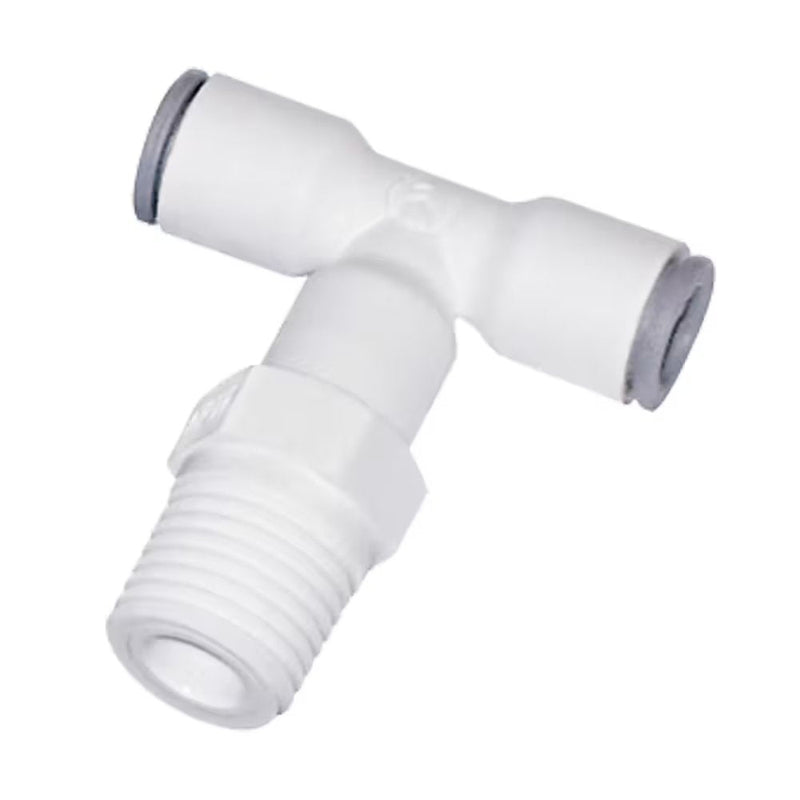

6508 60 14WP2 by Parker | LIQUIfit® Threaded Fitting | 3/8" Push-to-Connect x 1/4" Male NPTF Thread | 2.04" Width | Swivel | Tee | Nylon

6508 60 14WP2 by Parker | LIQUIfit® Threaded Fitting | 3/8" Push-to-Connect x 1/4" Male NPTF Thread | 2.04" Width | Swivel | Tee | Nylon | Pack of 10

Save $26.13 Save $26.13
$65.33
$65.33 - $65.33
$65.33
$39.20
$39.20 - $39.20
$39.20

by Parker Hannifin
LIQUIfit Fittings:6508 Swivel Branch Tee Inch Tube to NPTF

Package Quantity: 10 Units

Specifications for Variant SKU: 6508 60 14WP2 Parker | 10 |
Brand: LIQUIfit®
Series: 6508 Series
Shape (Orientation): Tee
Material(s): Nylon, Stainless Steel
Seal Material(s): EPDM
Special Properties: Swivel, Silicone Free, Food Grade
Product Features:
  • Stainless steel grab ring
  • Bio-sourced nylon 11
  • EPDM D – seal
  • FDA compliant, NSF/ANSI 51 and NSF/ANSI/CAN 61
  • Silicone free
  • 100% leak tested in production
  • Date coding to guarantee quality and traceability
Markets:
  • Water Filtration
  • Beverage Dispensing
  • Life Science
  • Bottling
  • Semi-Conductor
Applications:
  • Water
  • Beverages
  • Food
  • CO2
  • Vacuum
Pressure Range: Up to 230 PSI (16 bar)
Temperature Range: +35° to +200° F (+1.7° to +93.3° C)
Compatible Tubing:
  • Polyethylene
Part Number Tube Size C NPTF F H L
6508 56 11WP2 1/4" 1/4" 9/16" 1.10" .71"
6508 56 14WP2 1/4" 1/8" 1/2" 1.10" .71"
6508 56 18WP2 1/4" 3/8" 3/4" 1.10" .71"
6508 60 14WP2 3/8" 1/4" 3/4" 1.50" 1.02"
6508 60 18WP2 3/8" 3/8" 3/4" 1.50" 1.02"
6508 62 18WP2 1/2" 3/8" 15/16" 1.97" 1.40"
6508 62 22WP2 1/2" 1/2" 15/16" 2.00" 1.40"
