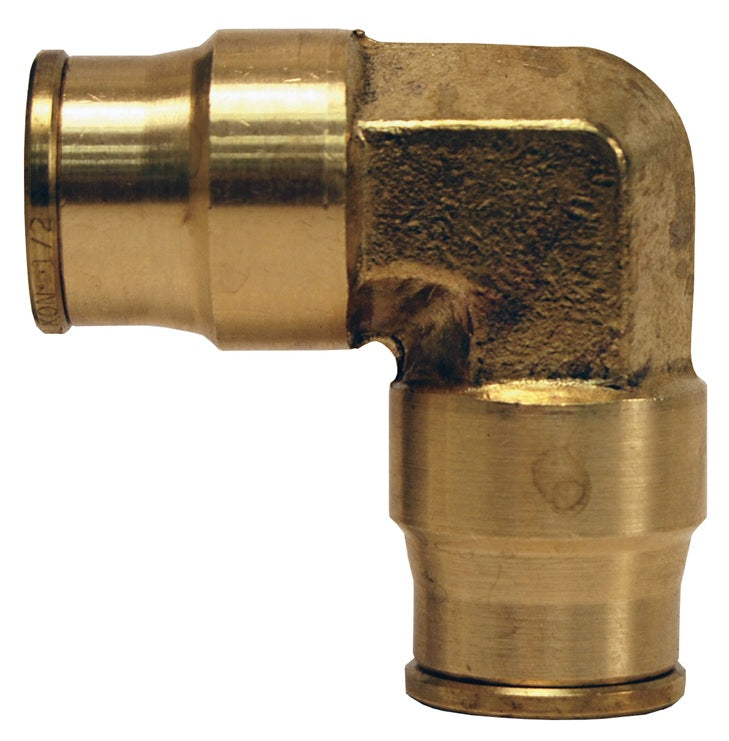

6512 by Dixon Valve | Push-In Fitting | Union | 90° Elbow | 3/8" Tube OD x 3/8" Tube OD | Forged Brass

Save $5.37

$13.42

$13.42 - $13.42

$13.42

$8.05

$8.05 - $8.05

$8.05

Dixon Valve & Coupling
Push-In Fitting | Union | 90° Elbow | Tube End x Tube End

Specifications for Variant SKU: 6512 Dixon
Shape (Orientation):	90 Degree
Ends Configuration:	3/8in Push-to-Connect, 3/8in Push-to-Connect, Some Ends Match
Material(s):	Brass

Use:
Suitable for vacuum service. Working pressure: suitable for use up to the maximum working pressure of the plastic tubing used.
Features:
Positive seal: no leaks, after tubing is inserted, seal is made. Secure tube retention: pulling on tubing only serves to tighten the connection. Full flow design provides up to 60% more flow than conventional fittings with internal tube supports. Supplied with gasket.
Construction:
Forged Brass
Specifications:
Temperature range: -10°F to 200°F (-23°C to 93°C)
Safety Notes:
Fittings are suitable for use up to the maximum working pressure of the plastic tubing used.
Installation:
Saves up to 75% of assembly time versus the standard compression fittings. Quick connect: simply push tubing in, no tools required. Quick disconnect: hold two fingers on insert and pull tubing out, no tools required. Reusable: connect and disconnect numerous times.

Part Number	Tube O.D.
654	1/8"
655	5/32"
658	1/4"
6512	3/8"
6516	1/2"
