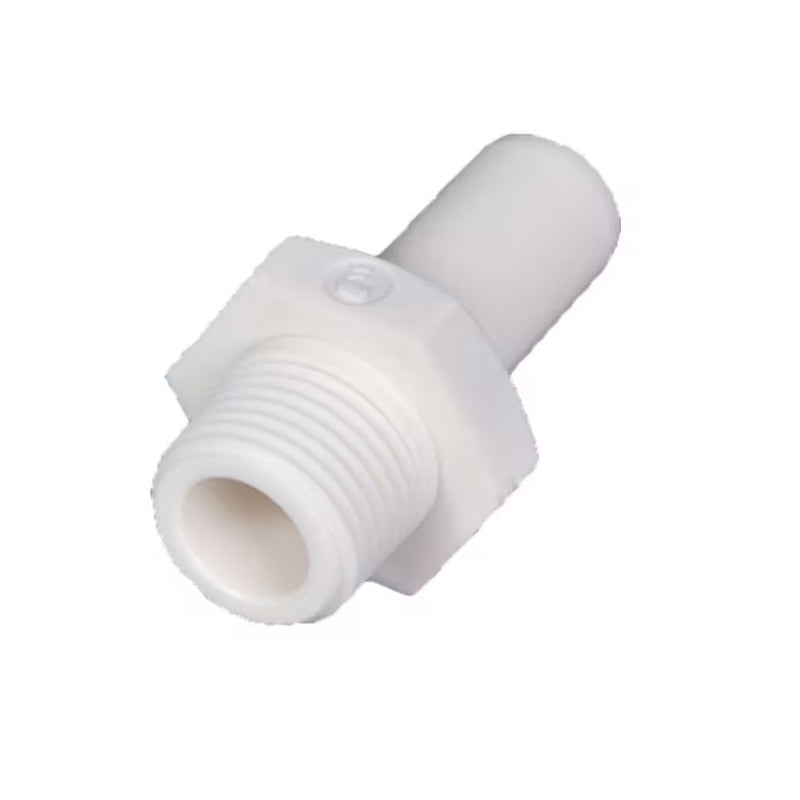

6521 12 17WP2 by Parker | Legris Stud Standpipe | 12 mm Tube Size x 3/8" Male BSPT Standpipe Thread | 22 mm hex | Straight | Polymer | Pack of 5

Save $6.16

$16.36

$16.36 - $16.36

$16.36

$10.20

$10.20 - $10.20

$10.20

5 items | $2.04 each

by Parker Hannifin
LIQUIfit® Push-In Fittings / Stud Fittings:6521 Stud Standpipe, Male BSPT Thread

Specifications for Variant SKU: 6521 12 17WP2 Parker \| 5 \|
Brand:	LIQUIfit®
Series:	6325 Series
Shape (Orientation):	Straight
Material(s):	Polymer
Seal Material(s):	EPDM
Special Properties:	Food Grade, Silicone Free, Bisphenol Free, Phthalate Free

Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Technical Characteristics:	Compatible Fluids: Water, beverages, CO2 (inert use) Working Pressure: Vacuum to 16 bar Working Temperature: -10°C to +95°C -20° to +70°C for 16 mm to 10 bar
Advantages:	Bio-sourced polymer meeting food process regulations Compliant with FDA, NSF, DM174, KTW, ACS standards Easy-to-clean external surfaces Free of bisphenol and phthalates
Regulations:	RoHS REACH FDA: 21 CFR NSF: 51 NSF 61 - C HOT 1935/2004 DM 174 ACS KTW
Component Materials:	Body and Adapter: Bio-Based Polymer Grey Release button: Technical Polymer Gripping ring or collet (6501 and 6599): Stainless Steel Seal: EPDM


Part Number	ØD	C	F	H	Kg
6521 06 10WP2	6 mm	1/8"	13 mm	19 mm	.002 Kg
6521 06 13WP2	6 mm	1/4"	14 mm	19 mm	.003 Kg
6521 06 17WP2	6 mm	3/8"	17 mm	19 mm	.004 Kg
6521 08 10WP2	8 mm	1/8"	19 mm	23 mm	.003 Kg
6521 08 13WP2	8 mm	1/4"	19 mm	23 mm	.004 Kg
6521 08 17WP2	8 mm	3/8"	19 mm	23 mm	.004 Kg
6521 10 13WP2	10 mm	1/4"	19 mm	25 mm	.004 Kg
6521 10 17WP2	10 mm	3/8"	19 mm	25 mm	.005 Kg
6521 10 21WP2	10 mm	1/2"	22 mm	25 mm	.008 Kg
6521 12 17WP2	12 mm	3/8"	22 mm	28 mm	.005 Kg
6521 12 21WP2	12 mm	1/2"	22 mm	28 mm	.007 Kg

Thread without pre-coating.
