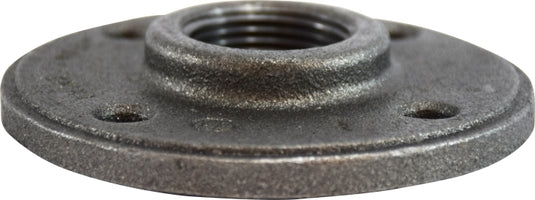

65697 (65-697) Midland Malleable Iron #150 Fitting - Floor Flange - 2" Female NPT - Black Iron

65697 by Midland | Malleable Iron #150 Fitting | Floor Flange | 2" Female NPT | Black Iron

Save $6.89 Save $6.89
$17.22
$17.22 - $17.22
$17.22
$10.33
$10.33 - $10.33
$10.33

Midland Industries
Malleable Iron #150 Fitting - Floor Flange - Female NPT - Black Iron

All Fittings are 100% Pressure Tested to 300# Class.

Every fitting is subjected to an underwater fitness test to ensure the highest quality
Specifications for Variant SKU: 65697 Midland
Shape (Orientation): Straight
Ends Configuration: 2in Female NPT, 2in 150# Flange
Material(s): Black Iron
Applicable Specs & Approvals: ASTM A 197, ASTM A 153, ASTM A164 LS, ANSI B 16.3, ANSI B 16.14, ANSI B 16.39, RoHS Compliant
Features:
  • Better molds reduce parting lines and rough edges resulting in better fluid flow.
  • By using a low temperature galvanizing process the coating is more durable which means a longer lasting fitting.
  • Saturated Steam Pressure: 150 PSI @ 350°F
  • Max Pressure: 300 PSI @ 150°F
  • Temp Range: -20°F to 350°F
Specifications:
  • Material: ASTM A 197 - Cuppla Malleable Iron, ASTM A 153 - Hot dipped galvanizing - Coating ASTM A164 LS
  • Dimensions: ANSI B 16.3 - Malleable Iron threaded fittings, ANSI B 16.14 - Ferrous Pipe Plugs, Bushings etc, ANSI B 16.39 - Malleable Iron threaded pipe unions.
  • Threads: ANSI B 2.1 or BS 21 ASME B1.20.1 - RoHS Compliant - Tapered Threads
Malleable Iron - ANSI B 16.3
F° Class 150 PSIG Sizes 1/4" - 1" 300# Sizes 1-1/4" - 2" 300# Sizes 2-1/4" - 3" 300#
-200 to 150 300 2000 1500 1000
200 265 1785 1350 910
250 225 1575 1200 825
300 185 1360 1050 735
366* 150 1150 900 650

* Permissible for service temperature up to 366°F, reflecting the temperature of saturated steam at 150 psig.
Part Number Size A
Female NPT		 Thickness Hole Size Approx. Weight
(Lbs.)
65690 3/8" - - - 0.29
65692
(65-692)		 1/2" 3.50" 0.50" 0.25" 0.63
65693
(65-693)		 3/4" 3.50" 0.63" 0.25" 0.73
65694
(65-694)		 1" 4.00" 0.69" 0.25" 1.02
65695
(65-695)		 1-1/4" 4.00" 0.75" 0.25" 1.00
65696
(65-696)		 1-1/2" 4.50" 0.87" 0.31" 1.37
65697
(65-697)		 2" - - - -
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
