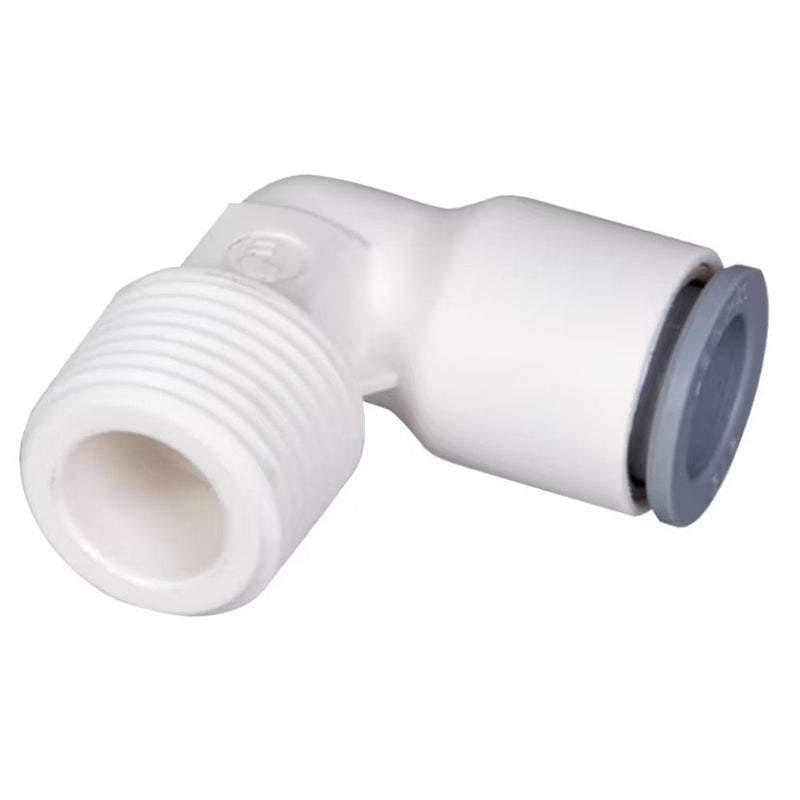

6579 06 13WP2 by Parker | Legris Fixed Fitting | 6 mm Tube Size x 1/4" Male BSPT Thread | 90° Elbow | Polymer

6579 06 13WP2 by Parker | Legris Fixed Fitting | 6 mm Tube Size x 1/4" Male BSPT Thread | 90° Elbow | Polymer | Pack of 10

Save $17.15 Save $17.15
$42.88
$42.88 - $42.88
$42.88
$25.73
$25.73 - $25.73
$25.73

by Parker Hannifin
LIQUIfit® Push-In Fittings / Stud Fittings:6579 Fixed Fitting, Male BSPT Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 6579 06 13WP2 Parker | 10 |
Brand: LIQUIfit®
Series: 6579 Series
Shape (Orientation): 90° Elbow
Material(s): Polymer, Stainless Steel
Seal Material(s): EPDM
Special Properties: Food Grade, Silicone Free, Bisphenol Free, Phthalate Free
Technical Characteristics:
  • Compatible Fluids: Water, beverages, CO2 (inert use)
  • Working Pressure: Vacuum to 16 bar
  • Working Temperature: -10°C to +95°C
    -20° to +70°C for 16 mm to 10 bar
Advantages:
  • Bio-sourced polymer meeting food process regulations
  • Compliant with FDA, NSF, DM174, KTW, ACS standards
  • Easy-to-clean external surfaces
  • Free of bisphenol and phthalates
Regulations:
  • RoHS
  • REACH
  • FDA: 21 CFR
  • NSF: 51
  • NSF 61 - C HOT
  • 1935/2004
  • DM 174
  • ACS
  • KTW
Component Materials:
  • Body and Adapter: Bio-Based Polymer
  • Grey Release button: Technical Polymer
  • Gripping ring or collet (6501 and 6599): Stainless Steel
  • Seal: EPDM
Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Part Number ØD C G H J L Kg
6579 06 10WP2 6 mm 1/8" 11 mm 14 mm 10 mm 19 mm .002 Kg
6579 06 13WP2 6 mm 1/4" 11 mm 14 mm 10 mm 19 mm .003 Kg
6579 06 17WP2 6 mm 3/8" 11 mm 14 mm 10 mm 19 mm .004 Kg

Thread without pre-coating.
