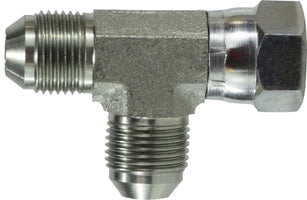

66028 (6602-8) Midland Hydraulic JIC Swivel Run Tee - 3/4-16 Male JIC 37° Flare x 3/4-16 Female JIC 37° Flare x 3/4-16 Male JIC 37° Flare - Steel

66028 by Midland | Hydraulic JIC Swivel Run | 3/4-16 Male JIC 37° Flare x 3/4-16 Female JIC 37° Flare x 3/4-16 Male JIC 37° Flare | Tee | Steel

Save $4.07 Save $4.07
$10.17
$10.17 - $10.17
$10.17
$6.10
$6.10 - $6.10
$6.10

Midland Industries
Hydraulic Adapters: JIC Swivel Run Tee - Steel

Inventory @ Manufacturers Warehouse: 425 Units
Specifications for Variant SKU: 66028 Midland
Shape (Orientation): Tee
Ends Configuration: 1/2in Male JIC, 1/2in Female JIC, 1/2in Male JIC, Some Ends Match
Material(s): Steel
Applicable Specs & Approvals: Applicable SAE Standards, Applicable Military Specifications
Specifications:
  • SAE 070432
  • MS 51523
Technical Info:
Crossover Series:
6602 203102R R6X 1248 C5706
Part Number Male JIC 37° Flare
(1 & 3)		 Male JIC 37° Flare
Threads
(1 & 3)		 Female JIC 37° Flare
(2)		 Female JIC 37° Flare
Threads
(2)
66024
(6602-4)		 1/4" 7/16-20 1/4" 7/16-20
66025
(6602-5)		 5/16" 1/2-20 5/16" 1/2-20
66026
(6002-6) 		3/8" 9/16-18 3/8" 9/16-18
66028
(6602-8) 		1/2" 3/4-16 1/2" 3/4-16
660210 5/8" 7/8-14 5/8" 7/8-14
660212
(6602-12) 		3/4" 1-1/16-12 3/4" 1-1/16-12
660214 7/8" 1-13/16-12 7/8" 1-13/16-12
6602-16-16-08 1" x 1/2" 1-5/16-12 x 3/4-16 1" 1-5/16-12
660216
(6602-16) 		1" 1-5/16-12 1" 1-5/16-12
660220 1-1/4" 1-5/8-12 1-1/4" 1-5/8-12
660224
(6602-24) 		1-1/2" 1-7/8-12 1-1/2" 1-7/8-12
6602-32-32-32 2" 2-1/2-12 2" 2-1/2-12
