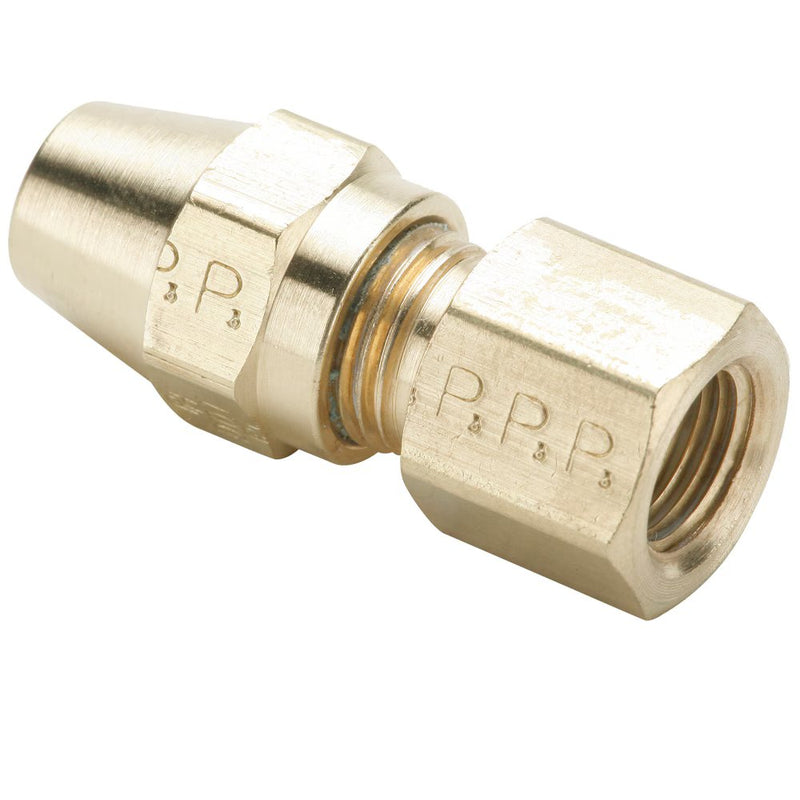

66AB-4-4 by Parker | Air Brake - AB Fittings | 1/4" Tube Size Connector x 1/4" Female Pipe Thread x 7/16" Thread | 11/16" Hex | 1.65" Length | Straight | Brass | Pack of 10

66AB-4-4 by Parker | Air Brake - AB Fittings | 1/4" Tube Size Connector x 1/4" Female Pipe Thread x 7/16" Thread | 11/16" Hex | 1.65" Length | Straight | Brass | Pack of 10

Save $67.17 Save $67.17
$167.93
$167.93 - $167.93
$167.93
$100.76
$100.76 - $100.76
$100.76

by Parker Hannifin
Air Brake – AB Fittings:Female Connector 66AB

Package Quantity: 10 Units

Specifications for Variant SKU: 66AB-4-4 Parker | 10 |
Series: 66AB Series
Shape (Orientation): Straight
Material(s): Brass
Special Properties: Fuel Grade, Reuseable
Product Features:
  • Brass Body
  • Meets D.O.T. FMVSS571.106 Performance
  • Meets functional Requirements SAE J246
  • Reusable
  • Pre-applied Thread Sealant
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Copper Air Brake Lines
  • Coolant Lines
  • Fuel Lines
Specification:
Pressure Range: Up to 400 PSI (27.5 bar)
Temperature Range: -65° to +250° F (-53.8° to +121.1° C)
Compatible Tubing:
  • Copper Air Brake Tubing
Part Number Tube Size Pipe Thread Straight Thread Hex (C) L M Flow Diameter (D)
66AB-4-2 1/4" 1/8" 7/16"-24 9/16" 1.42" .84" .188"
66AB-4-4 1/4" 1/4" 7/16"-24 11/16" 1.65" 1.07" .188"
66AB-6-2 3/8" 1/8" 17/32"-24 9/16" 1.89" 1.00" .314"
66AB-6-4 3/8" 1/4" 17/32"-24 11/16" 2.07" 1.18" .314"
66AB-6-6 3/8" 3/8" 17/32"-24 7/8" 2.07" 1.18" .314"
66AB-8-6 1/2" 3/8" 11/16"-20 7/8" 2.23" 1.27" .408"
66AB-8-8 1/2" 1/2" 11/16"-20 1-1/16" 2.40" 1.44" .408"
66AB-10-6 5/8" 3/8" 13/16"-18 7/8" 2.40" 1.31" .533"
66AB-10-8 5/8" 1/2" 13/16"-18 1-1/16" 2.59" 1.50" .533"
