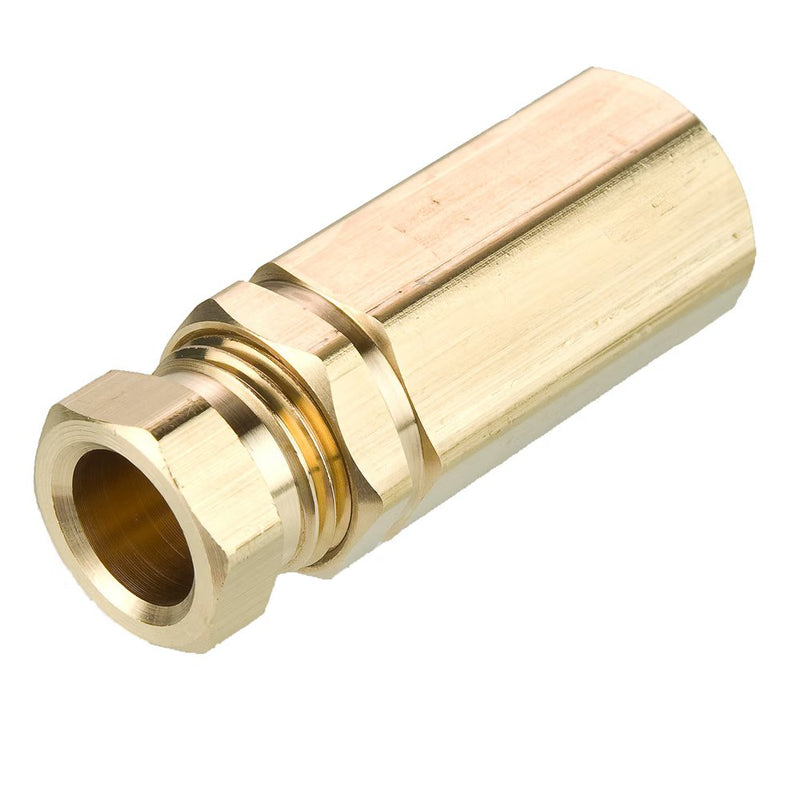

66HD-2-2 by Parker | Hi-Duty Fittings | 1/8" Tube Size Connector x 1/8" Female Pipe Thread | Min. Orifice Size: .093" | .500" Hex | 1.312" Length | Straight | Brass | Pack of 10

66HD-2-2 by Parker | Hi-Duty Fittings | 1/8" Tube Size Connector x 1/8" Female Pipe Thread | Min. Orifice Size: .093" | .500" Hex | 1.312" Length | Straight | Brass | Pack of 10

Save $11.72 Save $11.72
$128.91
$128.91 - $128.91
$128.91
$117.19
$117.19 - $117.19
$117.19

by Parker Hannifin
Hi-Duty Flareless Tube Fittings:Female Connector 66HD

Package Quantity: 10 Units

Specifications for Variant SKU: 66HD-2-2 Parker | 10 |
Series: 66HD Series
Shape (Orientation): Straight
Material(s): Brass
Special Properties: Fuel Grade
Product Features:
  • All brass construction
  • Two piece fitting
  • Higher pressure rating
  • Easy assembly
Markets:
  • Mobile
  • Industrial
  • Compressors
  • Lubrication
Applications:
  • Lubrication Lines
  • Coolant Lines
  • Oil Lines
  • Engines
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: -65° to +250° F (-53.8° to +121.1° C)
Pressure Range: See Chart Below
Compatible Tubing:
  • Copper
  • Brass
  • Seamless Steel
  • Thermoplastic Tubing
Part Number Tube Size Pipe Thread Minimum Orifice Size A B Hex (C)
66HD-2-2 1/8" 1/8" .093" 1.312" 1.000" .500"
66HD-4-2 1/4" 1/8" .187" 1.406" 1.000" .562"
66HD-4-4 1/4" 1/4" .187" 1.593" 1.187" .687"
66HD-6-2 3/8" 1/8" .312" 1.531" 1.125" .625"
66HD-6-4 3/8" 1/4" .312" 1.718" 1.312" .625"
66HD-6-6 3/8" 3/8" .312" 1.750" 1.343" .812"
