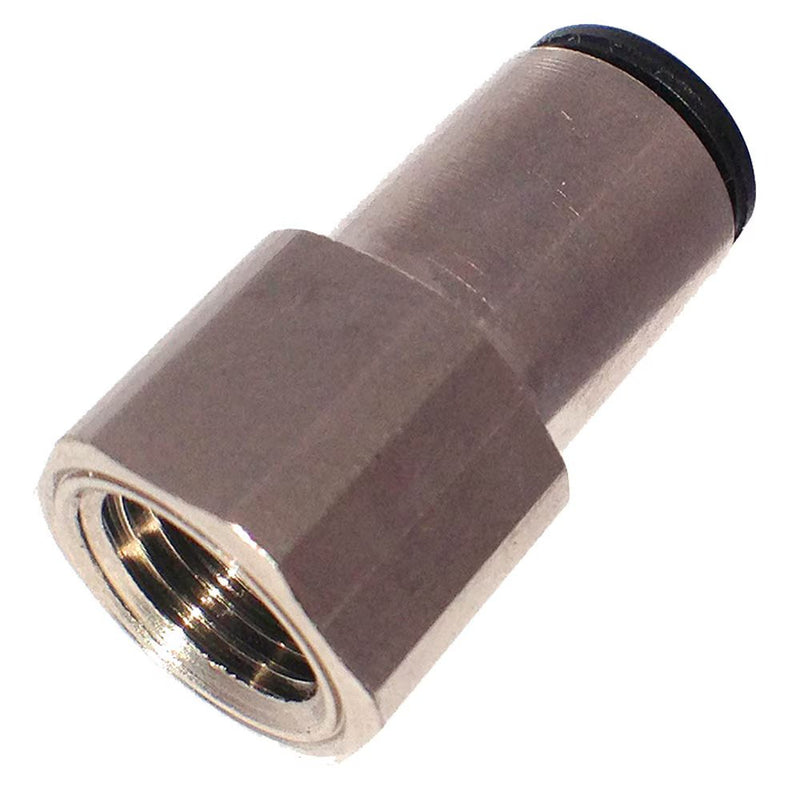

66LF-14M-6G by Parker | Prestolok PLP Composite Push-to-Connect Fittings | 14mm Connector x 3/8" Female BSPP Thread | 42.5mm Length | Straight | Brass | Pack of 10

Save $16.56

$182.15

$182.15 - $182.15

$182.15

$165.59

$165.59 - $165.59

$165.59

by Parker Hannifin
Push-to-Connect Fittings:66LF Female Connector – BSPP

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 66LF-14M-6G Parker \| 10 \|
Series:	66LF Series
Shape (Orientation):	Straight
Material(s):	Brass, Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Corrosion Resistance, Chemical Resistance, Silicone Free

Product Features:	Stainless steel grab ring Glass-reinforced nylon 6.6 body Nitrile D-seal Nylon release button Corrosion and chemical resistance NPT, BSPT, BSPP, and metric threads Silicone Free
Markets:	Pneumatic Industrial Robotic Automation Printing Packaging Textile
Compatible Media:	Compressed Air Inert Gases Vacuum
Pressure Range:	Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range:	-4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating:	28" Hg
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A* Nylon Fluoropolymer Polyethylene


Part Number	Tube Size	Thread BSPP	E	F	H
66LF-4M-M5	4 mm	M5X0.8	6.5 mm	8 mm	19.5 mm
66LF-4M-2G	4 mm	1/8"	9.5 mm	13 mm	22.5 mm
66LF-4M-4G	4 mm	1/4"	13.5 mm	16 mm	19.5 mm
66LF-6M-2G	6 mm	1/8"	9.5 mm	13 mm	24.5 mm
66LF-6M-4G	6 mm	1/4"	13.5 mm	16 mm	28.5 mm
66LF-8M-2G	8 mm	1/8"	9.5 mm	13 mm	29.0 mm
66LF-8M-4G	8 mm	1/4"	13.5 mm	16 mm	33.0 mm
66LF-8M-6G	8 mm	3/8"	14.0 mm	19 mm	34.0 mm
66LF-10M-4G	10 mm	1/4"	13.5 mm	16 mm	36.0 mm
66LF-10M-6G	10 mm	3/8"	14.0 mm	19 mm	36.0 mm
66LF-10M-8G	10 mm	1/2"	19.5 mm	24 mm	41.5 mm
66LF-12M-4G	12 mm	1/4"	14.0 mm	19 mm	39.5 mm
66LF-12M-6G	12 mm	3/8"	14.0 mm	19 mm	40.0 mm
66LF-12M-8G	12 mm	1/4"	19.5 mm	24 mm	45.5 mm
66LF-14M-6G	14 mm	3/8"	14.0 mm	22 mm	42.5 mm
66LF-16M-8G	16 mm	1/2"	15.0 mm	27 mm	49.0 mm
