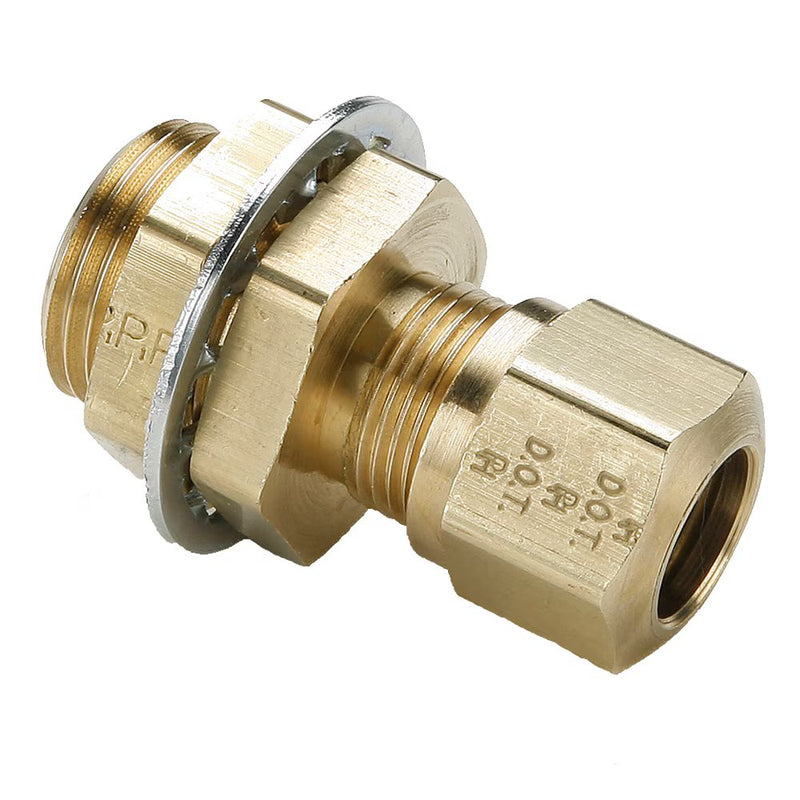

66NBH-8-6 by Parker | Air Brake–NTA® Fittings | Bulkhead Union | 1/2" Tube Size x 3/8" Female Pipe Thread x 11/16" Thread x 7/8" Thread | 1-1/16" Hex B | 1-1/16" Hex C | 1.94" Length | Straight | Brass | Pack of 10

66NBH-8-6 by Parker | Air Brake–NTA® Fittings | Bulkhead Union | 1/2" Tube Size x 3/8" Female Pipe Thread x 11/16" Thread x 7/8" Thread | 1-1/16" Hex B | 1-1/16" Hex C | 1.94" Length | Straight | Brass | Pack of 10

Save $110.85 Save $110.85
$277.12
$277.12 - $277.12
$277.12
$166.27
$166.27 - $166.27
$166.27

by Parker Hannifin
Air Brake–NTA® Fittings:Bulkhead Union 66NBH

Package Quantity: 10 Units

Specifications for Variant SKU: 66NBH-8-6 Parker | 10 |
Brand: Air Brake–NTA®
Shape (Orientation): Straight
Material(s): Brass
Product Features:
  • Brass Body
  • Meets D.O.T. FMVSS571.106 Performance
  • Meets functional Requirements SAE J246 & SAE J1131
  • Pre-applied Thread Sealant
  • Nickel Plated Versions Available for Bio-diesel
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Air Brakes
  • Air Tanks
  • Air Ride
  • Sliders
  • Tire Inflation
  • Primary & Secondary Air Lines
  • Cab Controls
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: -40° to +200° F (-40° to +93.3° C)
Compatible Tubing:
  • SAE J844 Type A & B nylon tubing
Part Number Tube Size Pipe Thread Straight Thread (A) Straight Thread (E) Hex (B) Hex (C) L M Flow Diameter (D) Bulkhead Hole Diameter
66NBH-8-6 1/2" 3/8" 11/16"-20 7/8"-14 1-1/16" 1-1/16" 1.94" 1.42" .338" 7/8"
