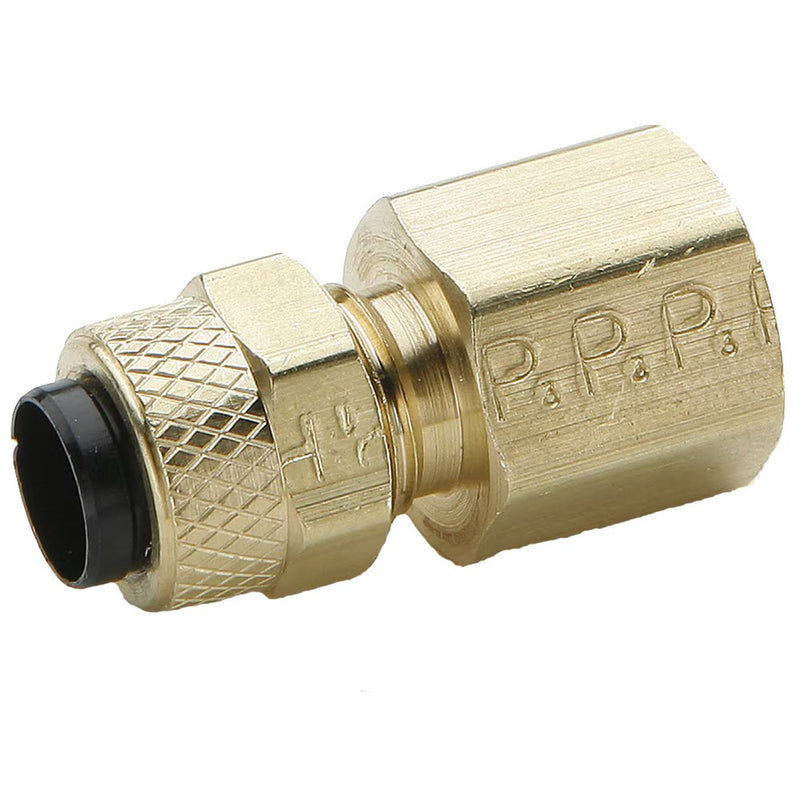

66P-4-4 by Parker | Poly-Tite Fittings | 1/4" Tube Size Connector x 1/4" Female Pipe Thread x 3/8" Thread | 5/8" Hex | 1.18" Length | Straight | Brass | Pack of 10

66P-4-4 by Parker | Poly-Tite Fittings | 1/4" Tube Size Connector x 1/4" Female Pipe Thread x 3/8" Thread | 5/8" Hex | 1.18" Length | Straight | Brass | Pack of 10

Save $12.50 Save $12.50
$65.30
$65.30 - $65.30
$65.30
$52.80
$52.80 - $52.80
$52.80

by Parker Hannifin
Poly-Tite Fittings:Female Connector 66P

Package Quantity: 10 Units

Specifications for Variant SKU: 66P-4-4 Parker | 10 |
Series: 66P Series
Shape (Orientation): Straight
Material(s): Brass, Acetal Copolymer
Special Properties: Silicone Free
Product Features:
  • Self aligning captive sleeve
  • Built-in tube support
  • Knurled nuts for hand tightening
  • Plastic and brass sleeves available
  • Chrome plated and stainless steel side latch couplers available
Markets:
  • Dental
  • Packaging
  • Machine Tools
  • Car Wash
  • Printing
Applications:
  • Pneumatic Systems
  • Water Lines
  • Dental Equipment
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: 0° to +150° F (-17.7° to +65.5° C)
O-Rings: Buna N on chrome plated couplers Fluorocarbon on Stainless Steel couplers
Compatible Tubing:
  • Polyethylene
  • Nylon
  • Polypropylene
  • Vinyl
Part Number Tube Size Pipe Thread Straight Thread Hex (C) L M Flow Diameter (D)
66P-4-2 1/4" 1/8" 3/8"-24 9/16" .97" .86" .125"
66P-4-4 1/4" 1/4" 3/8"-24 5/8" 1.18" 1.07" .125"
66P-5-2 5/16" 1/8" 7/16"-24 9/16" .97" .86" .144"
66P-6-4 3/8" 1/4" 1/2"-24 5/8" 1.18" 1.07" .204"
66P-8-6 1/2" 3/8" 11/16"-20 13/16" 1.31" 1.20" .323"
