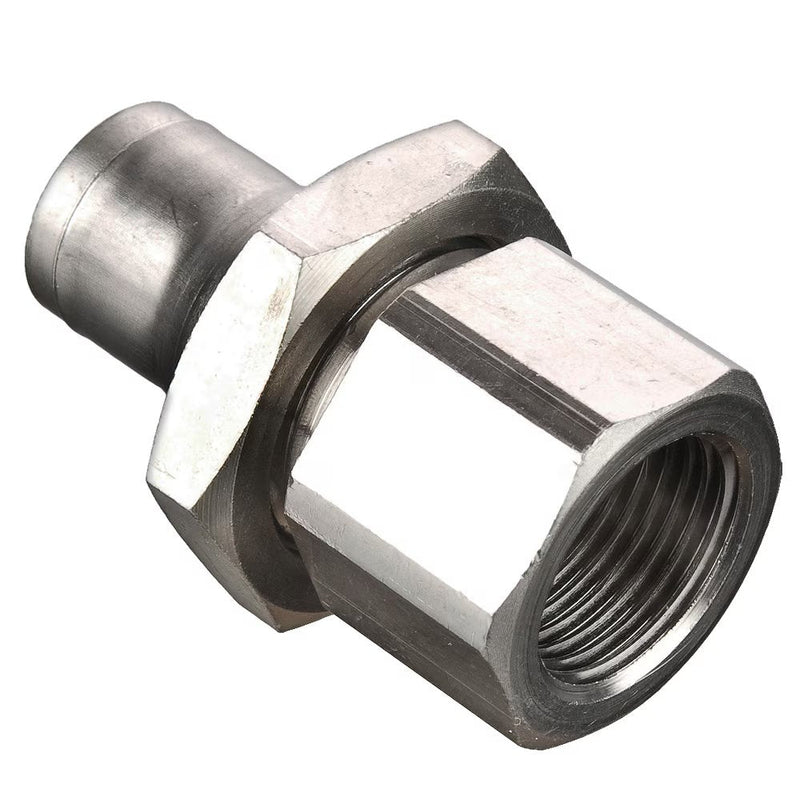

66PLMBH-12M-6G by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Bulkhead | 12 mm Bulkhead Connector x 3/8" Female BSPP Threads | Straight | Electroless Nickel-Plated Brass | Pack of 5

Save $74.27

$185.68

$185.68 - $185.68

$185.68

$111.41

$111.41 - $111.41

$111.41

by Parker Hannifin
Prestolok PLM Metal Push-to-Connect Fittings:66PLMBH Female Bulkhead Connector Metric Tube to BSPP

Package Quantity: 5 Units

Specifications for Variant SKU: 66PLMBH-12M-6G Parker \| 5 \|
Series:	66PLMBH Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass
Special Properties:	Food Grade, Corrosion Resistance, Chemical Resistance, Abrasion Resistance, Silicone Free

Product Features:	High phosphorous, FDA-compliant, chemical resistant, nickel-plated collet and body FKM seal Chemical, corrosion, and abrasion resistance NPT, BSPT, BSPP, and metric threads Silicone Free
Markets:	Industrial Chemical Life Science Semi-conductors Automation Food Processing
Compatible Media:	Food Fluids Harsh Detergents Cleaning In Cold/Hot Water Steam Oils Compressed Air Inert Gases
Pressure Range:	Up to 435 psi (30 bar) 290 psi (19.9 bar) for 169PLM
Vacuum Rating:	28" Hg
Temperature Range:	-13° to +302° F (-25° to +150° C)
Compatible Tubing:	Polyethylene Polyurethane 95 Durometer Shore A* Nylon FEP


Part Number	Tube Size	BSPP	F1	F2	H	H1	K	T
66PLMBH-4M-2G	4 mm	1/8"	14 mm	14 mm	30.50 mm	11.00 mm	15.00 mm	13 mm
66PLMBH-6M-2G	6 mm	1/8"	17 mm	17 mm	32.50 mm	11.00 mm	18.50 mm	15 mm
66PLMBH-6M-4G	6 mm	1/4"	17 mm	17 mm	37.00 mm	15.00 mm	18.50 mm	15 mm
66PLMBH-8M-2G	8 mm	1/8"	19 mm	19 mm	34.00 mm	10.50 mm	21.00 mm	17 mm
66PLMBH-8M-4G	8 mm	1/4"	19 mm	19 mm	38.00 mm	14.50 mm	21.00 mm	17 mm
66PLMBH-10M-6G	10 mm	3/8"	22 mm	27 mm	42.50 mm	16.00 mm	24.00 mm	21 mm
66PLMBH-12M-6G	12 mm	3/8"	24 mm	24 mm	43.00 mm	16.00 mm	26.00 mm	23 mm
66PLMBH-12M-8G	12 mm	1/2"	27 mm	24 mm	48.50 mm	21.50 mm	29.50 mm	23 mm
