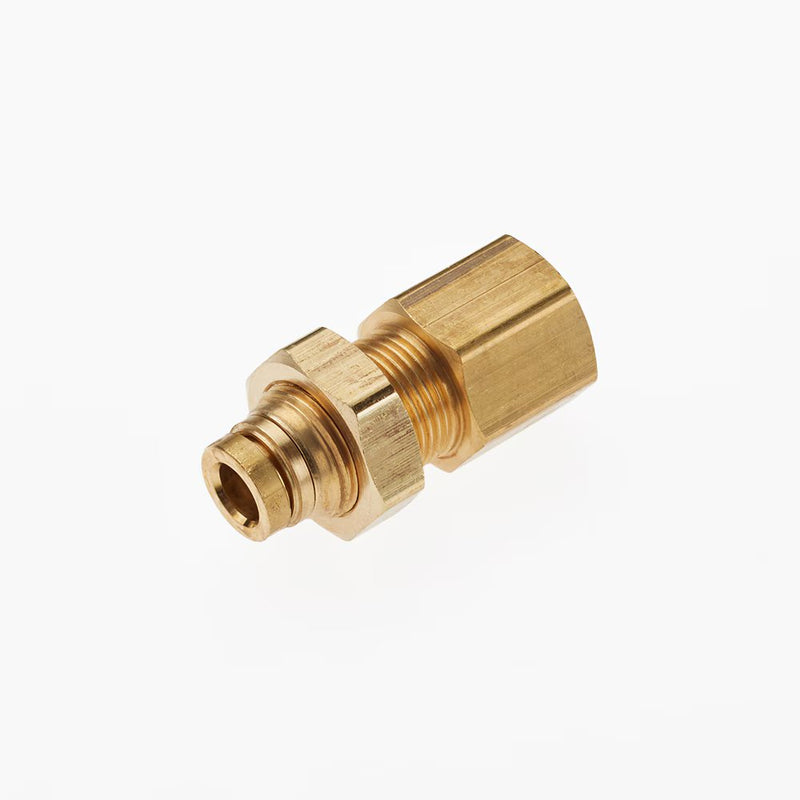

66PTCBH-6-6 by Parker | Bulkhead Union | 3/8" Push-to-Connect x 3/8" Female NPT Thread | 1.06" Hex | 1.87" Length | Straight | Brass | Pack of 10

Save $24.45

$166.72

$166.72 - $166.72

$166.72

$142.27

$142.27 - $142.27

$142.27

by Parker Hannifin
PTC Brass Fittings:Bulkhead Female Connector 66PTCBH

Package Quantity: 10 Units

Specifications for Variant SKU: 66PTCBH-6-6 Parker \| 10 \|
Series:	66PTCBH Series
Shape (Orientation):	Straight
Material(s):	Brass, Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Specification:
Product Features:	Brass Collet Buna N O-ring Stainless Steel Tube Support Meets D.O.T. FMVSS571.106 Meets SAE J2494-3 Meets SAE J2494 & SAE J2494-3
Markets:	Heavy Duty Truck Trailer Mobile
Applications:	Air Brakes Air Tanks Air Ride Sliders Tire Inflation Primary & Secondary Air Lines
Pressure Range:	Up to 250 PSI (17.2 bar)
Temperature Range:	-50° to +230° F (-45.5° to +100° C)
Temperature Range (3/16" & 5/32 only):	-40 to +200F (-40 to +93.3C)
Compatible Tubing:	SAE J844 Type A & B nylon tubing


Part Number	Tube Size	Pipe Thread	L	Hex (A)	Hex (B)	Bulkhead Hole Diameter
66PTCBH-4-4	1/4"	1/4"	1.62"	11/16"	3/4"	9/16"
66PTCBH-6-6	3/8"	3/8"	1.87"	1.06"	1.06"	7/8"
66PTCBH-8-8	1/2"	1/2"	2.02"	1-1/4"	1-1/4"	1"
