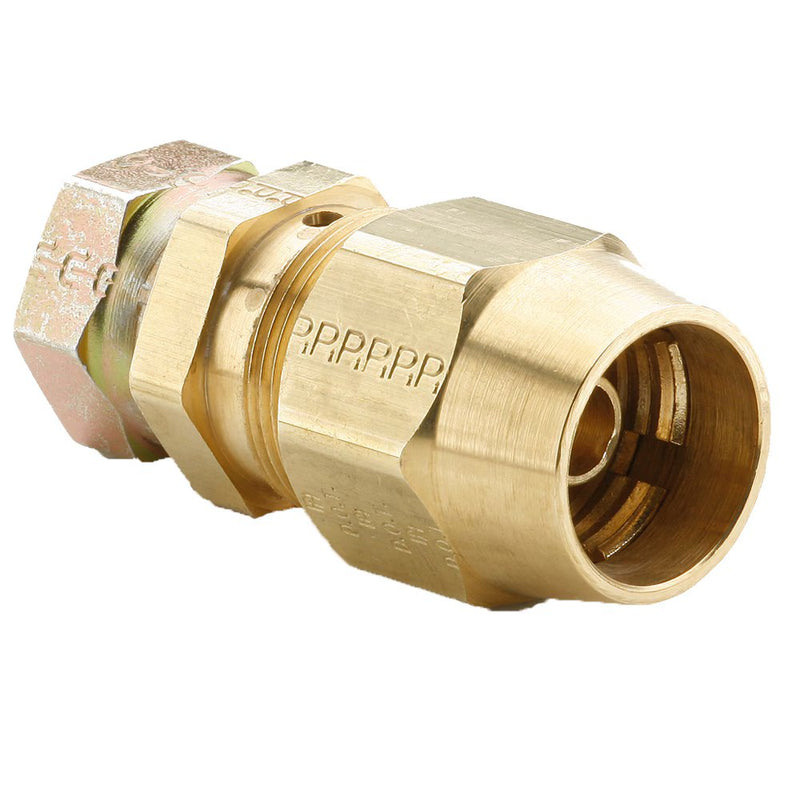

66RBSV-8-7/8 by Parker | Air Brake Hose Ends Fittings | 1/2" Hose Size x 7/8" Female Swivel Thread | 1-1/8" Hex1 | 1" Hex2 | 2.36" Length | Straight | Brass | Pack of 5

Save $10.28

$123.55

$123.55 - $123.55

$123.55

$113.27

$113.27 - $113.27

$113.27

by Parker Hannifin
Air Brake Hose Ends Fittings:Female Swivel Connector 66RBSV

Package Quantity: 5 Units

Quantity

Specifications for Variant SKU: 66RBSV-8-7/8 Parker \| 5 \|
Series:	66RBSV Series
Shape (Orientation):	Straight
Material(s):	Brass
Special Properties:	Swivel

Specification:
Product Features:	Brass Body Meets D.O.T. FMVSS571.106 when used with SAE J1402 air brake hose
Markets:	Heavy Duty Truck Trailer
Applications:	Air Lines Frame to Axle
Pressure Range:	Up to 400 PSI (27.5 bar)
Temperature Range:	-65° to +250° F (-53.8° to +121.1° C)
Compatible Tubing:	Parker 271 air brake hose SAE J1402 air brake hose


Part Number	Hose Size	Straight Thread	Hex 1	Hex 2	L	M	D
66RBSV-6-3/4	3/8"	3/4"-20	31/32"	7/8"	2.30"	2.09"	.281"
66RBSV-8-7/8	1/2"	7/8"-20	1-1/8"	1"	2.36"	2.14"	.390"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
