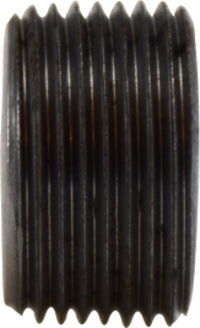

67635 (67-635) Midland Steel Fitting - Countersunk Plug (Square Socket) - 1" Male NPTF - Black Steel

67635 by Midland | Countersunk Plug (Square Socket) | 1" Male NPTF Fitting | Black Steel

Save $2.14 Save $2.14
$5.35
$5.35 - $5.35
$5.35
$3.21
$3.21 - $3.21
$3.21

Midland Industries
Steel Fitting - Countersunk Plug (Square Socket) - Male NPTF - Black Steel

Solid

Lead Free

Pressure rating: 150/300 PSI

Inventory @ Manufacturers Warehouse: 22 Units
Specifications for Variant SKU: 67635 Midland
Ends Configuration: 1in Male NPTF
Material(s): Black Steel
Applicable Specs & Approvals: ASME B16.14, ROHS Compliant
Features:
  • This will certify that the plugs are dimensional per SAE J531 MAY 95 Standards. All threads are Dryseal (NPTF) - 3/4"Taper per foot and are made of SAE J403 Low Carbon Steel 1010 Cold headed.
  • Clear Zinc plating specifications ASTM B633-07
  • Type III with supplemental clear Trivalent chromate.
  • .00015" Zinc (Minimum)
Specifications:
  • Federal Specification QQ-Z-325 (Zinc Plate)
  • ROHS Compliant
Part Number Male NPTF A Socket Size Approx. Weight
(Lbs.)
67630
(67-630)		 1/8" 0.29" 0.19" 0.01
67631
(67-631)		 1/4" 0.45" 0.25" 0.02
67632
(67-632)		 3/8" 0.45" 0.31" 0.04
67633
(67-633)		 1/2" 0.59" 0.38" 0.08
67634
(67-634)		 3/4" 0.60" 0.50" 0.12
67635
(67-635)		 1" 0.75" 0.50" 0.16
67636
(67-636)		 1-1/4" 0.80" 0.75" 0.32
67637
(67-637)		 1-1/2" 0.83" 0.75" 0.45
67638
(67-638)		 2" 0.88" 0.875" 2.06
