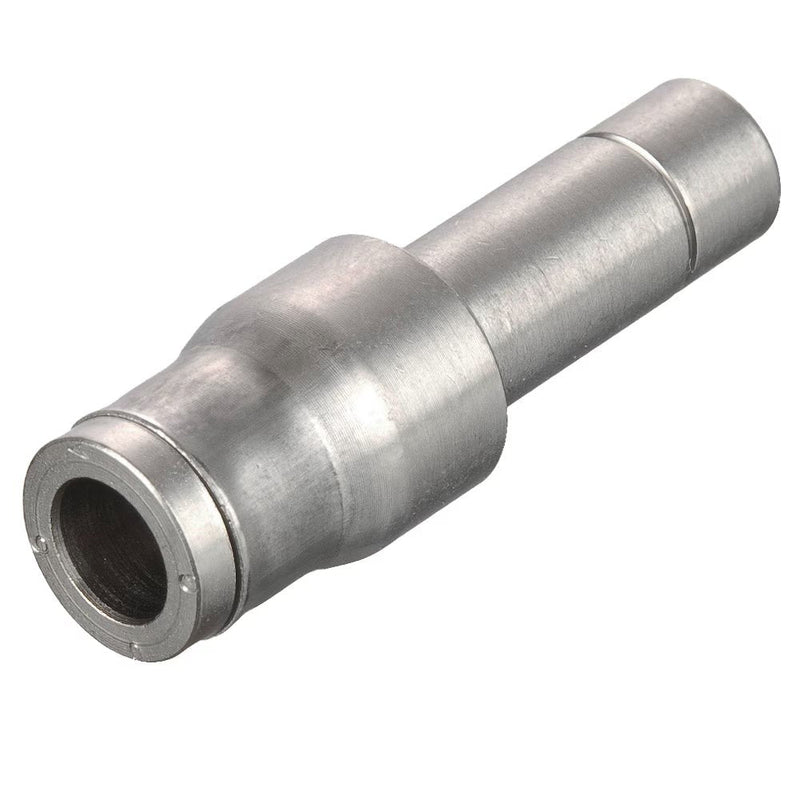

67PLM-10M-12M by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Tube Reducer | 12 mm to 10 mm Tube Size | 50.00 mm Length | Straight | Electroless Nickel-Plated Brass | Pack of 10

67PLM-10M-12M by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Tube Reducer | 12 mm to 10 mm Tube Size | 50.00 mm Length | Straight | Electroless Nickel-Plated Brass | Pack of 10

Save $27.29 Save $27.29
$217.69
$217.69 - $217.69
$217.69
$190.40
$190.40 - $190.40
$190.40

by Parker Hannifin
Prestolok PLM Metal Push-to-Connect Fittings:67PLM Plug-In Reducer Metric

Package Quantity: 10 Units

Specifications for Variant SKU: 67PLM-10M-12M Parker | 10 |
Series: 67PLM Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass
Special Properties: Food Grade, Corrosion Resistance, Chemical Resistance, Abrasion Resistance, Silicone Free
Product Features:
  • High phosphorous, FDA-compliant, chemical resistant, nickel-plated collet and body
  • FKM seal
  • Chemical, corrosion, and abrasion resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Industrial
  • Chemical
  • Life Science
  • Semi-conductors
  • Automation
  • Food Processing
Compatible Media:
  • Food Fluids
  • Harsh Detergents
  • Cleaning In Cold/Hot Water
  • Steam
  • Oils
  • Compressed Air
  • Inert Gases
Pressure Range: Up to 435 psi (30 bar)
290 psi (19.9 bar) for 169PLM
Vacuum Rating: 28" Hg
Temperature Range: -13° to +302° F (-25° to +150° C)
Compatible Tubing:
  • Polyethylene
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • FEP
Part Number Tube Size 1 Tube Size 2 L L1 L2
67PLM-4M-6M 4 mm 6 mm 34.50 mm 19.00 mm 17.50 mm
67PLM-4M-8M 4 mm 8 mm 35.50 mm 20.00 mm 18.00 mm
67PLM-6M-8M 6 mm 8 mm 37.00 mm 20.00 mm 19.50 mm
67PLM-6M-10M 6 mm 10 mm 43.50 mm 25.00 mm 21.00 mm
67PLM-8M-10M 8 mm 10 mm 44.00 mm 25.00 mm 21.50 mm
67PLM-8M-12M 8 mm 12 mm 45.00 mm 26.00 mm 21.50 mm
67PLM-10M-12M 10 mm 12 mm 50.00 mm 26.00 mm 26.50 mm
67PLM-12M-14M 12 mm 14 mm 53.00 mm 28.00 mm 28.50 mm
