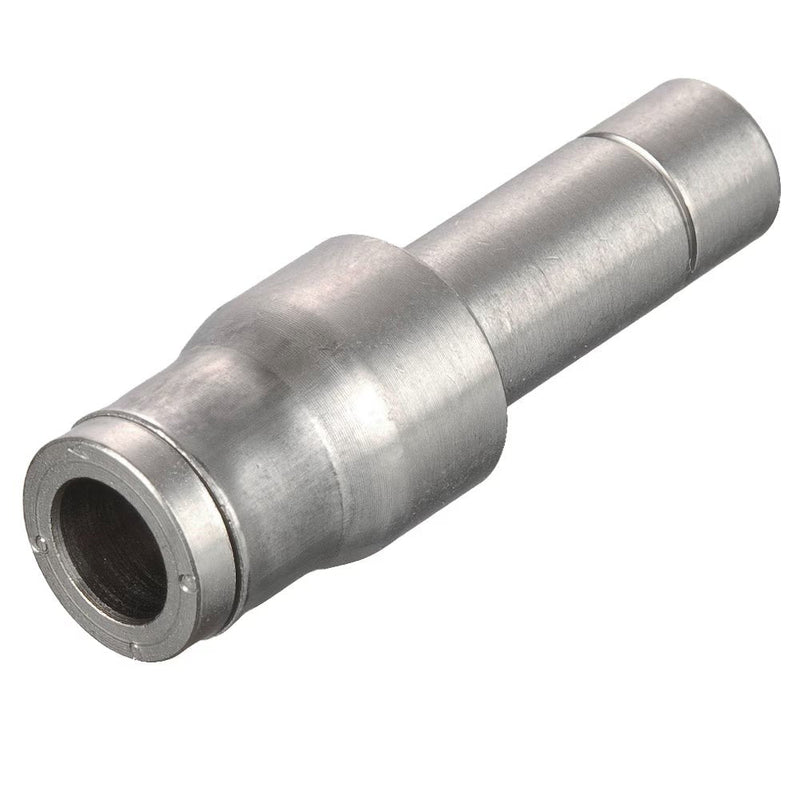

67PLM-8M-12M by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Tube Reducer | 12 mm to 8 mm Tube Size | 45.00 mm Length | Straight | Electroless Nickel-Plated Brass | Pack of 10

Save $25.08

$198.81

$198.81 - $198.81

$198.81

$173.73

$173.73 - $173.73

$173.73

by Parker Hannifin
Prestolok PLM Metal Push-to-Connect Fittings:67PLM Plug-In Reducer Metric

Package Quantity: 10 Units

Specifications for Variant SKU: 67PLM-8M-12M Parker \| 10 \|
Series:	67PLM Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass
Special Properties:	Food Grade, Corrosion Resistance, Chemical Resistance, Abrasion Resistance, Silicone Free

Product Features:	High phosphorous, FDA-compliant, chemical resistant, nickel-plated collet and body FKM seal Chemical, corrosion, and abrasion resistance NPT, BSPT, BSPP, and metric threads Silicone Free
Markets:	Industrial Chemical Life Science Semi-conductors Automation Food Processing
Compatible Media:	Food Fluids Harsh Detergents Cleaning In Cold/Hot Water Steam Oils Compressed Air Inert Gases
Pressure Range:	Up to 435 psi (30 bar) 290 psi (19.9 bar) for 169PLM
Vacuum Rating:	28" Hg
Temperature Range:	-13° to +302° F (-25° to +150° C)
Compatible Tubing:	Polyethylene Polyurethane 95 Durometer Shore A* Nylon FEP


Part Number	Tube Size 1	Tube Size 2	L	L1	L2
67PLM-4M-6M	4 mm	6 mm	34.50 mm	19.00 mm	17.50 mm
67PLM-4M-8M	4 mm	8 mm	35.50 mm	20.00 mm	18.00 mm
67PLM-6M-8M	6 mm	8 mm	37.00 mm	20.00 mm	19.50 mm
67PLM-6M-10M	6 mm	10 mm	43.50 mm	25.00 mm	21.00 mm
67PLM-8M-10M	8 mm	10 mm	44.00 mm	25.00 mm	21.50 mm
67PLM-8M-12M	8 mm	12 mm	45.00 mm	26.00 mm	21.50 mm
67PLM-10M-12M	10 mm	12 mm	50.00 mm	26.00 mm	26.50 mm
67PLM-12M-14M	12 mm	14 mm	53.00 mm	28.00 mm	28.50 mm

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
