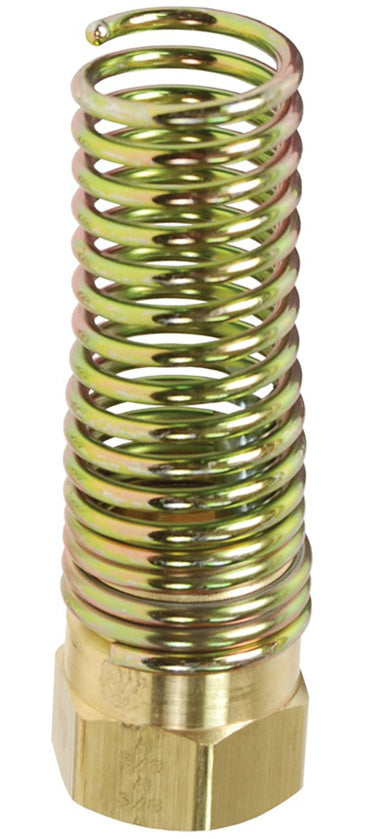

67RBSG-06 by Dixon Valve | Air Brake Fitting for Rubber Hose | Hose Nut with Attached Spring | 3/8" Hose Size | 3.55" Length | Brass Alloy 360

67RBSG-06 by Dixon Valve | Air Brake Fitting for Rubber Hose | Hose Nut with Attached Spring | 3/8" Hose Size | 3.55" Length | Brass Alloy 360

Save $0.40 Save $0.40
$4.68
$4.68 - $4.68
$4.68
$4.28
$4.28 - $4.28
$4.28

Dixon Valve & Coupling
Air Brake Fitting for Rubber Hose | Hose Nut with Attached Springs

For use with SAEJ1402 air brake hose in making hose assemblies
Specifications for Variant SKU: 67RBSG-06 Dixon
Shape (Orientation): No Orientation
Material(s): Brass
Use:
  • Recommended tubing: Polyethylene, Polyurethane 95A Durometer.
Features:
  • Utilize ribbed sleeve for compression and positive grip.
Construction:
  • Brass Alloy 360
Specifications:
  • Working pressure: up to 225 PSI
  • Temperature: -50°F to 212°F (-46° to 100°C)
Approvals:
  • Will meet D.O.T. FMVSS 571-106 standards when used with SAE J1402 air brake hose.
Assembly Instructions:
  • 1. Slide nut onto hose.
  • 2. Slide sleeve onto hose with tapered edge toward fitting body.
  • 3. Firmly bottom the hose into fittings.
  • 4. Screw nut onto body until it contacts the fittings body's hex.
Part Number Hose Size Length
67RBSG-06 3/8" 3.55"
67RBSG-08 1/2" 3.50"
