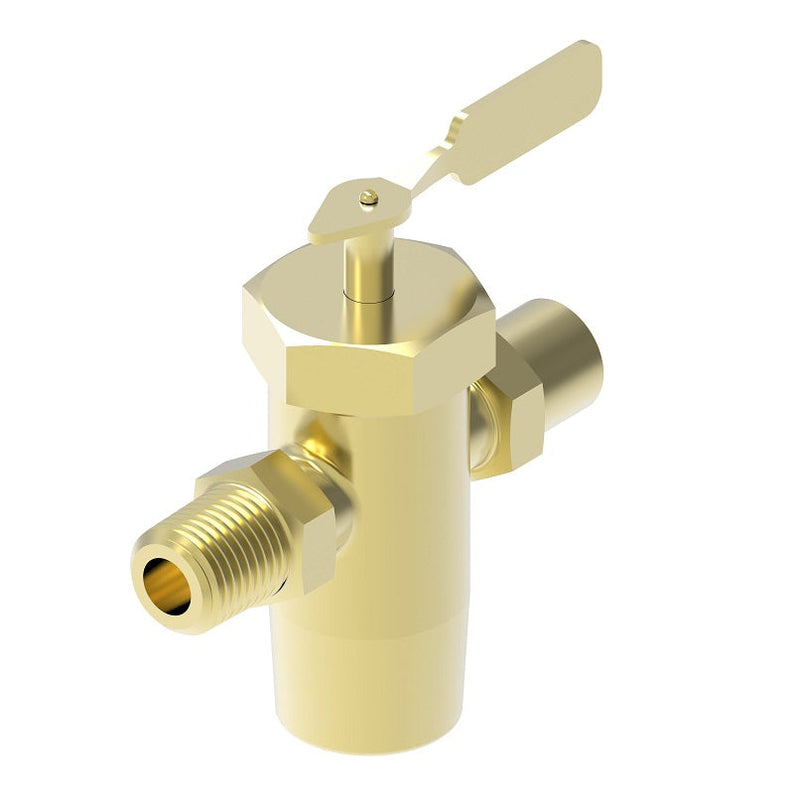

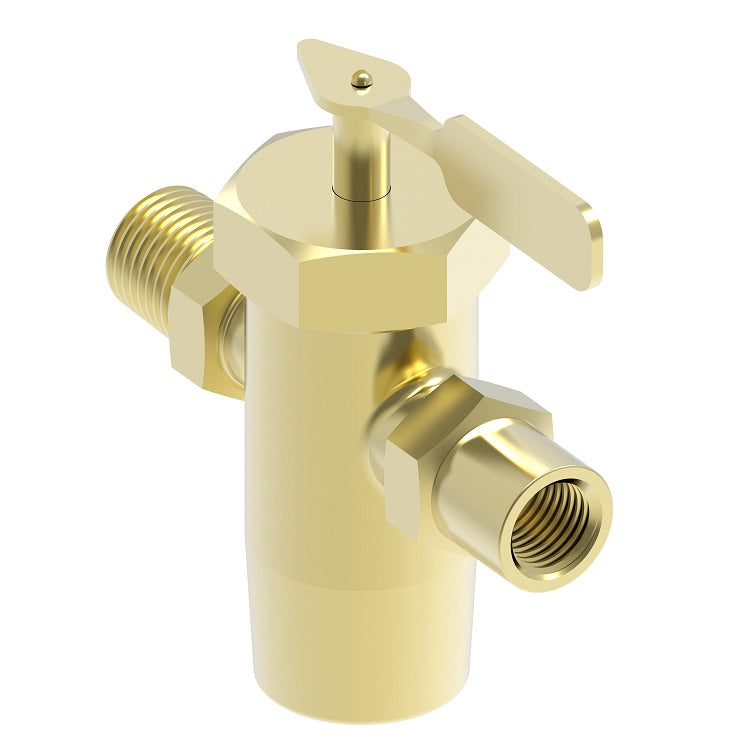

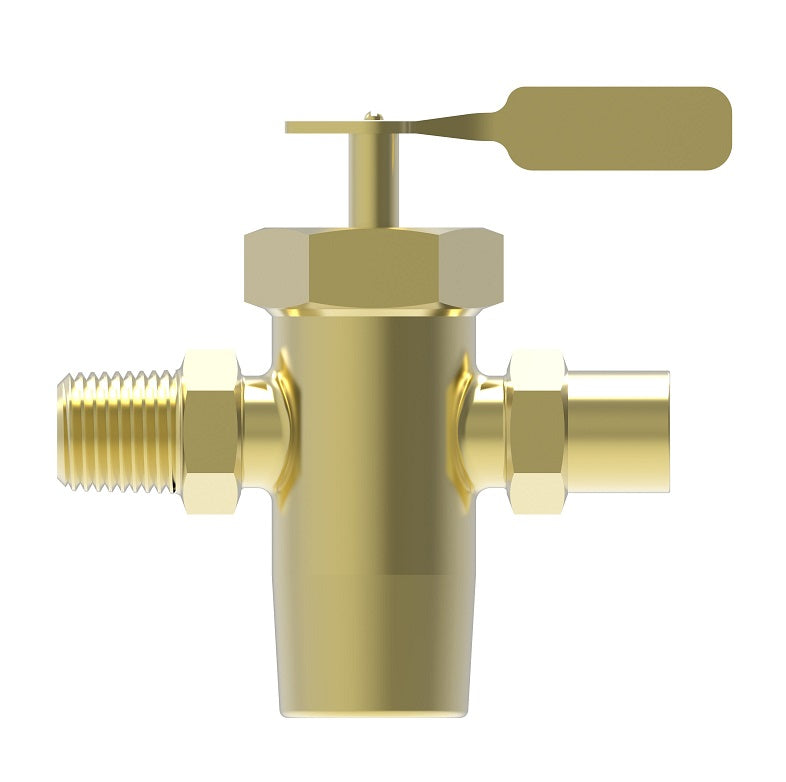

6828 by Danfoss | Marine Shut Off | Male to Female Pipe | 1/4" Male Pipe x 1/4" Female Pipe| Brass
6828 by Danfoss | Marine Shut Off | Male to Female Pipe | 1/4" Male Pipe x 1/4" Female Pipe| Brass
6828 by Danfoss | Marine Shut Off | Male to Female Pipe | 1/4" Male Pipe x 1/4" Female Pipe| Brass
6828 by Danfoss | Marine Shut Off | Male to Female Pipe | 1/4" Male Pipe x 1/4" Female Pipe| Brass

6828 by Danfoss | Marine Shut Off | Male to Female Pipe | 1/4" Male Pipe x 1/4" Female Pipe| Brass

$71.34 - $71.34
$71.34
$71.34 - $71.34
$71.34

Aeroquip® by Danfoss
Marine Shut Off - Male to Female Pipe
Specifications for Variant SKU: 6828 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/4in Male NPT, 1/4in Female NPT
Material(s): Brass
Applications:
  • Designed for automotive or industrial use.
Used With:
  • Copper, aluminum, steel and plastic tubing where applicable.
Material:
  • Brass bodies and handles.
Pressure:
  • 30 psi working pressure, except where noted.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) with metal tubing.
  • For use with plastic tubing, refer to the tubing temperature range.
Conformance:
  • UL Listed for Marine Fuel.
  • Not intended for natural gas, LPG, nuclear or aircraft applications, except as noted.
Note:
  • Ground Plug Drains and Shut-Offs use a universal lubricant satisfactory for use with most common fluids. However the lubricant may wash out at higher pressures or with some exotic fluids.
Brass
Part Number 		Male Pipe Thread Female Pipe Thread L M
6828 1/4" 1/4" 2.22" 1.97"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
