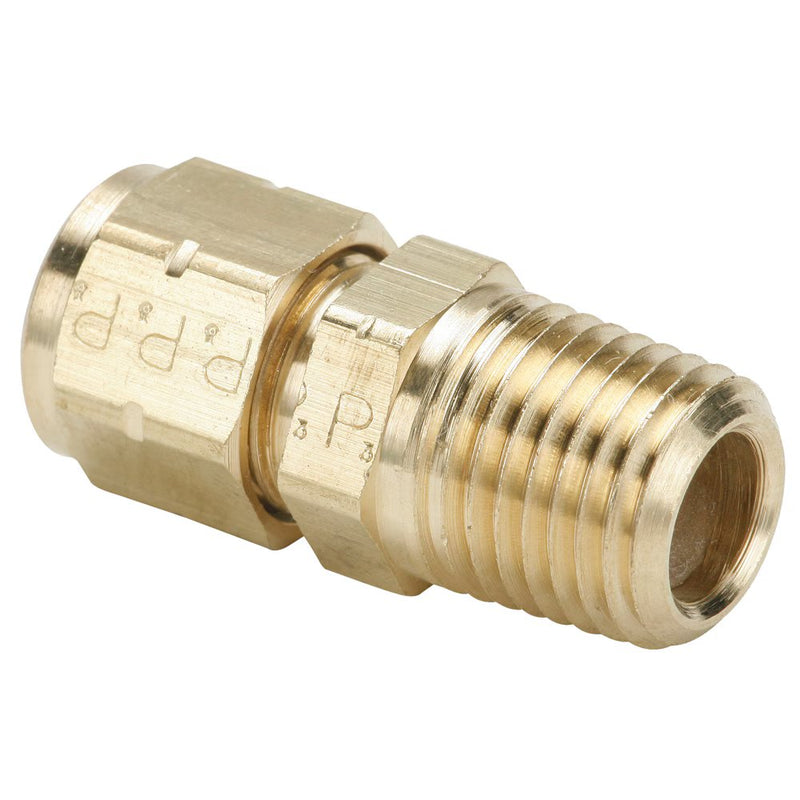

682VL-6-6 by Parker | Vibra-Lok Fittings | 3/8" Tube Size x 3/8" Male Pipe Thread | 11/16" Hex | 1.41" Length | Straight | Brass | Pack of 5

Minimum Order Quantity: 2 Units

Save $102.85

$257.13

$257.13 - $257.13

$257.13

$154.28

$154.28 - $154.28

$154.28

by Parker Hannifin
Vibra-Lok Fittings:Straight Through Tank Fitting 682VL

Package Quantity: 5 Units

Specifications for Variant SKU: 682VL-6-6 Parker \| 5 \|
Brand:	Vibra-Lok
Series:	682VL Series
Shape (Orientation):	Straight
Material(s):	Brass
Special Properties:	Fuel Grade, Vibration Resistance

Specification:
Product Features:	Brass Body Sleeves in Buna N and Fluorocarbon NPTF and SAE J1926 Straight Threads are Standard Excellent Vibration Resistance
Markets:	Heavy Duty Truck Trailer Mobile
Applications:	Oil Fuel Coolant Lines on engines
Pressure Range:	Dependent on condition and tube size, refer to pressure chart

Temperature Range:	-15° to +450° F (-26.1° to +232.2° C) with Fluorocarbon Sleeve -30° to +275° F (-34.4° to +135° C) with Buna N Sleeve
Compatible Tubing:	Copper Aluminum Steel (Bundy) Stainless Steel Glass


Part Number	Tube Size	Pipe Thread	Hex (C)	L	M	Flow Diameter (D)
682VL-4-2	1/4"	1/8"	9/16"	1.15"	.84"	.265"
682VL-4-4	1/4"	1/4"	9/16"	1.34"	1.03"	.265"
682VL-5-4	5/16"	1/4"	5/8"	1.41"	1.06"	.328"
682VL-6-6	3/8"	3/8"	11/16"	1.41"	1.06"	.406"
