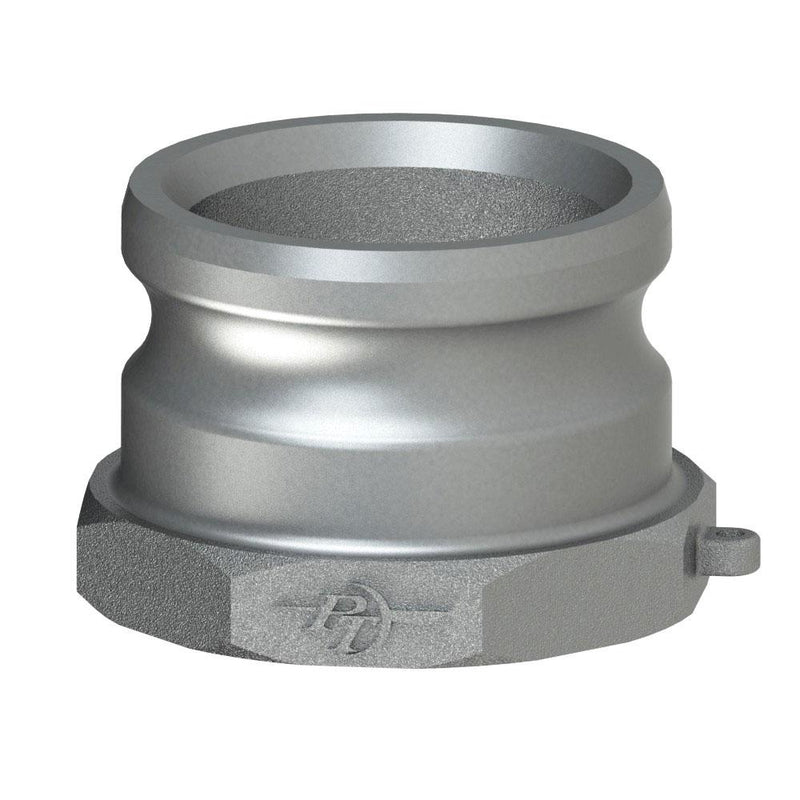

68344000 (40AS) by PT-Coupling | Cam & Groove Adapter | Type AS | 4" Adapter x 4" Female NPSH | Ductile Iron | Buna Fuel Resistant Seal

Save $35.16

$94.73

$94.73 - $94.73

$94.73

$59.57

$59.57 - $59.57

$59.57

PT Coupling
Cam & Groove (Camlock) Adapter | Type AS | Adapter x Female NPSH | Ductile Iron | Buna Fuel Resistant Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 68344000 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type A
Ends Configuration:	4in Male Cam & Groove, 4in Female NPSH
Material(s):	Ductile Iron
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
Female straight pipe threads are compatible with male NPSH, NPSM and NPT threads. Comes standard with a Buna Fuel Resistant straight thread gasket. Excellent abrasion and wear resistance. Good strength and toughness characteristics. Ideal for use with sand, grout, cement, and other abrasives. Made in the USA


Part Name	Item #	Adapter Size	Female NPSH Thread	Overall Length (C)	Inside Diameter (E)	Across Corners (F)	Chain Lug Extension (G)	Max. Allowable Working Press. (PSI)*
40AS	68344000	4"	4"	3.16"	3.78"	5.41"	0.39"	150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
