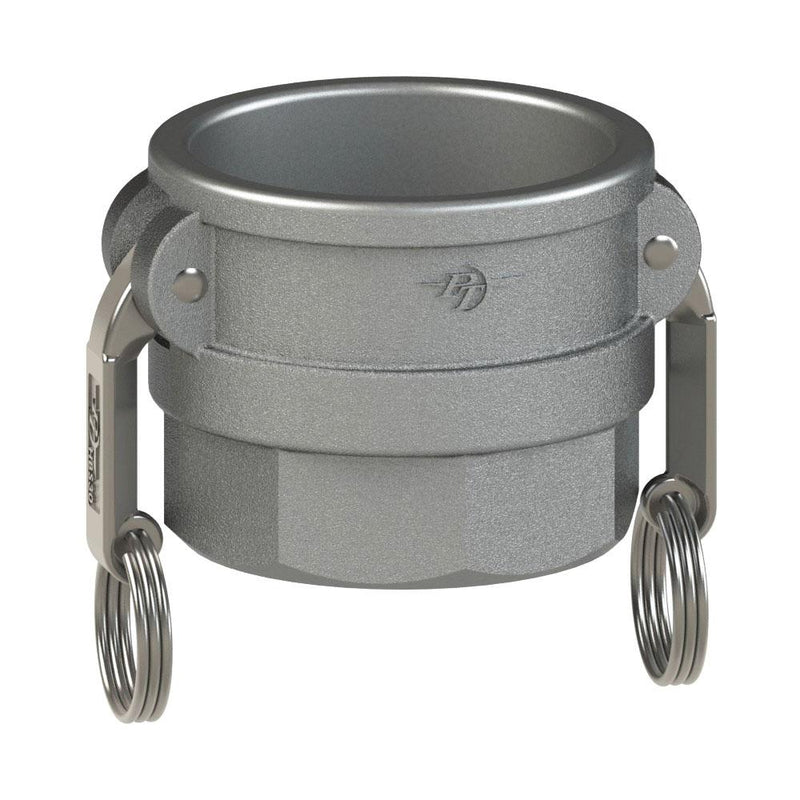

68366000 (60DS) by PT-Coupling | Cam & Groove Adapter | Type DS | 6" Coupler x 6" Female NPSH | Ductile Iron | Buna Fuel Resistant & Buna-N Seals

Save $86.49

$232.98

$232.98 - $232.98

$232.98

$146.49

$146.49 - $146.49

$146.49

PT Coupling
Cam & Groove (Camlock) Adapter | Type DS | Coupler x Female NPSH | Ductile Iron | Buna Fuel Resistant & Buna-N Seals

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 68366000 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type D
Ends Configuration:	6in Female Cam & Groove, 6in Female NPSH
Material(s):	Ductile Iron
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
Female straight pipe threads are compatible with male NPSH, NPSM and NPT threads. Comes standard with a Buna Fuel Resistant straight thread gasket, and Buna-N cam gasket. Excellent abrasion and wear resistance. Good strength and toughness characteristics. Ideal for use with sand, grout, cement, and other abrasives. Made in the USA


Part Name	Item #	Coupler Size	Female NPSH Thread	O. D. with Cam Arms Extended (A)	Outside Diameter (B)	Overall Length (C)	Inside Diameter (E)	Max. Allowable Working Press. (PSI)*
40DS	68364000	4"	4"	10.66"	6.56"	3.90"	3.60"	150 PSI
60DS	68366000	6"	6"	16.26"	10.16"	4.40"	5.50"	75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
