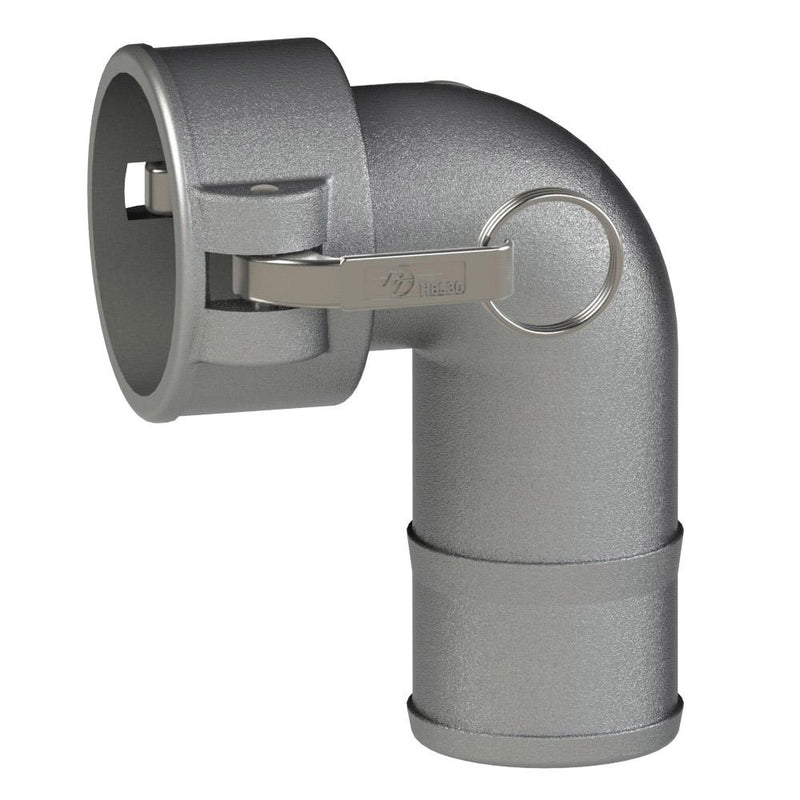

68504000 (40CL) by PT-Coupling | Cam & Groove Adapter | Type CL | 90° Elbow | 4" Coupler x 4" Hose Shank | Ductile Iron | Buna-N Seal

68504000 (40CL) by PT-Coupling | Cam & Groove Fitting | Type CL | 90° Elbow | 4" Coupler x 4" Hose Shank | Ductile Iron | Buna-N Seal

Save $139.17 Save $139.17
$374.93
$374.93 - $374.93
$374.93
$235.76
$235.76 - $235.76
$235.76

PT Coupling
Cam & Groove (Camlock) Fitting | Type CL | 90° Elbow | Coupler x Hose Shank | Ductile Iron | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 68504000 PT-Coupling
Shape (Orientation): 90 Degree Elbow
Cam Type: Type C
Ends Configuration: 4in Female Cam & Groove, 4in Hose Barb
Material(s): Ductile Iron
Seal Material(s): Buna-N/Nitrile
Features & Applications:
  • Excellent abrasion and wear resistance. Good strength and toughness characteristics.
  • Ideal for use with sand, grout, cement, and other abrasives.
  • Made in the USA
Part
Name		 Item # Orientation Coupler
Size		 Hose Shank
Size		 Max. Allowable
Working Press.
(PSI)*
40CL 68504000 90° 4" 4" 150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
