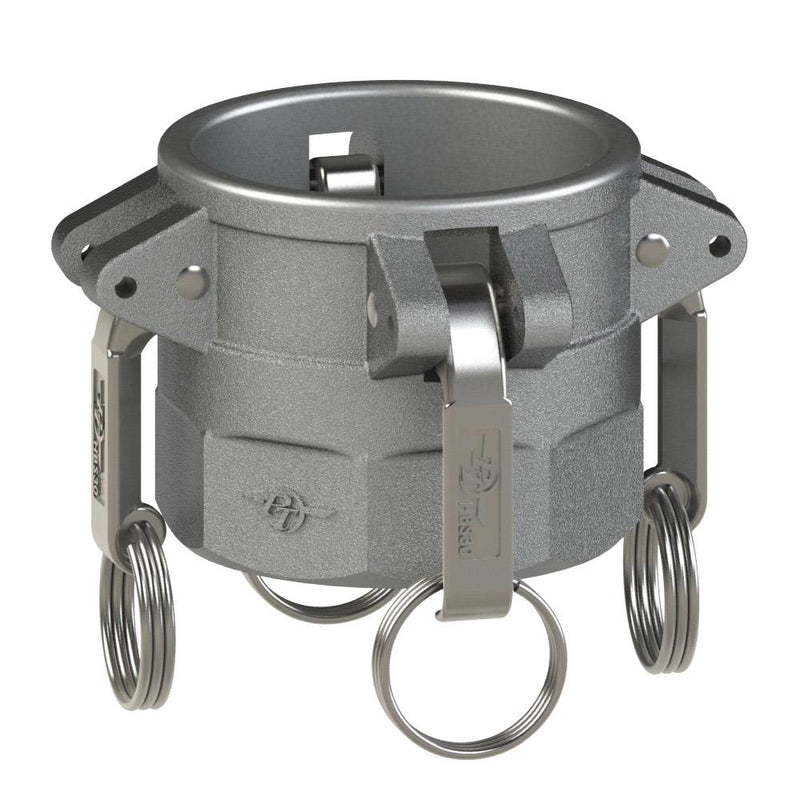

68782000 (20DHD) by PT-Coupling | Heavy Duty Cam & Groove Adapter | Type DHD | 2" Coupler x 2" Female NPT | Ductile Iron | Buna-N Seal

Save $31.33

$84.38

$84.38 - $84.38

$84.38

$53.05

$53.05 - $53.05

$53.05

PT Coupling
Heavy Duty Cam & Groove (Camlock) Adapter | Type DHD | Coupler x Female NPT | Ductile Iron | Buna-N Seal

Ideal for use with sand, grout, cement, and other abrasives.

Made in the USA

Specifications for Variant SKU: 68782000 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type D
Ends Configuration:	2in Female Cam & Groove, 2in Female NPT
Material(s):	Ductile Iron
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
Excellent abrasion and wear resistance. Good strength and toughness characteristics. Ideal for use with sand, grout, cement, and other abrasives. 2-1/2" and smaller couplers come standard with 2 cam arms while 3" and larger couplers come with 4 STA-LOK® II cam arms. Made in the USA

Part Name	Item #	Heavy Duty Coupler	Female NPT Thread	Max. Allowable Working Press. (PSI)*
15DHD	68781500	1-1/2"	1-1/2"	500 PSI
20DHD	68782000	2"	2"	500 PSI
25DHD	68782500	2-1/2"	2-1/2"	400 PSI
30DHD	18004304CM	3"	3"	400 PSI
40DHD	18004404CM	4"	4"	300 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
