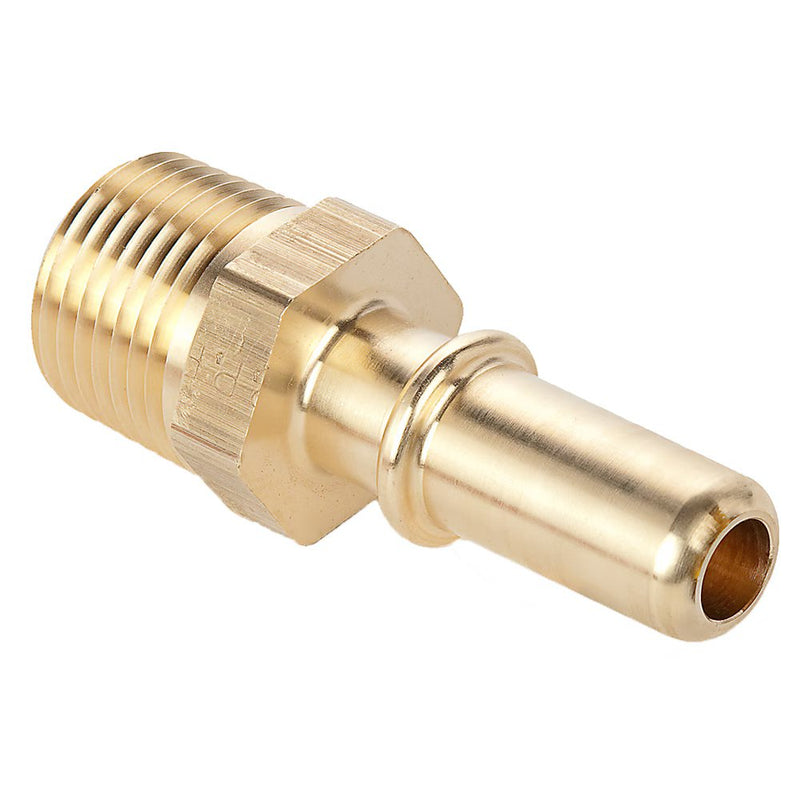

68ALS-5-4 by Parker | Safe Lock Fitting | 5/16" SAE J2044 Push-to-Connect x 1/4" Male NPTF Thread | Straight | Brass

68ALS-5-4 by Parker | Safe Lock Fitting | 5/16" SAE J2044 Push-to-Connect x 1/4" Male NPTF Thread | Straight | Brass

Minimum Order Quantity: 25 Units

Save $8.22 Save $8.22
$27.86
$27.86 - $27.86
$27.86
$19.64
$19.64 - $19.64
$19.64

by Parker Hannifin
Parker Safe Lock:Brass Adapter 68ALS
Specifications for Variant SKU: 68ALS-5-4 Parker
Series: 68ALS Series
Shape (Orientation): Straight
Material(s): Brass
Seal Material(s): Fluorocarbon
Special Properties: Fuel Grade, Corrosion Resistance
Push-to-Connect Fitting

Safe Lock Brass Adapter SAE J2044

Push-to-connect design reduces hose assembly fabrication time, and the exclusive Safe Lock locking mechanism minimizes leaks and installation failures.

1

Which markets use this product?
  • Heavy Duty Truck
  • Trailer
  • Mobile
  • Automotive
  • Agriculture
  • Material Handling
  • Transportation
2

What is this product used for?
  • Engine Fuel Supply
  • Coolant / Heater Lines
  • Vapor Emission Service
  • Drain Lines
  • Biodiesel (to B20, dedicated and non-dedicated service)
3

What are the key specifications?
Construction

Corrosion resistant, high-temperature brass

Configuration

Rigid male pipe

Industry Standard

SAE J2044

Pressure Range

-7.2 to +72 PSI (-0.4 to 4.9 bar)

Temperature Range

-40° to +239°F (-40° to +115°C)

4

What are the main product features?
  • Push-to-connect design reduces hose assembly time and allows one-handed operation, which is especially useful in confined spaces.
  • Exclusive Safe Lock retaining mechanism provides enhanced fitting retention and minimizes leaks and installation failures.
  • Distinctive audible “click” plus a visual indicator confirm a secure, fully-locked connection.
  • Fluorocarbon and fluorosilicone seals for broad chemical and temperature compatibility.
  • Corrosion-resistant, high-temperature brass construction meets SAE J2044.
5

Which sizes are available?
Part Number SAE J2044 Push-to-Connect Size Male NPTF Thread Size
68ALS-5-4 5/16" 1/4"
68ALS-6-4 3/8" 1/4"
68ALS-6-6 3/8" 3/8"
68ALS-8-6 1/2" 3/8"
68ALS-8-8 1/2" 1/2"
68ALS-10-8 5/8" 1/2"
68ALS-12M-8 12 mm 1/2"
i
Use with Parker Hose Products Division Series 389, 395, and 7181 hose. Cut hose to length, push the fitting into the hose and apply the specified clamp; to install the finished assembly, push the fitting onto the port and engage the lock with a distinctive “click” that secures the connection.

Complete the Safe Lock system

Safe Lock Straight (A613, A614) and Safe Lock Elbow (A623, A624) quick-connect fittings mate with this brass adapter to complete the connection.

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
