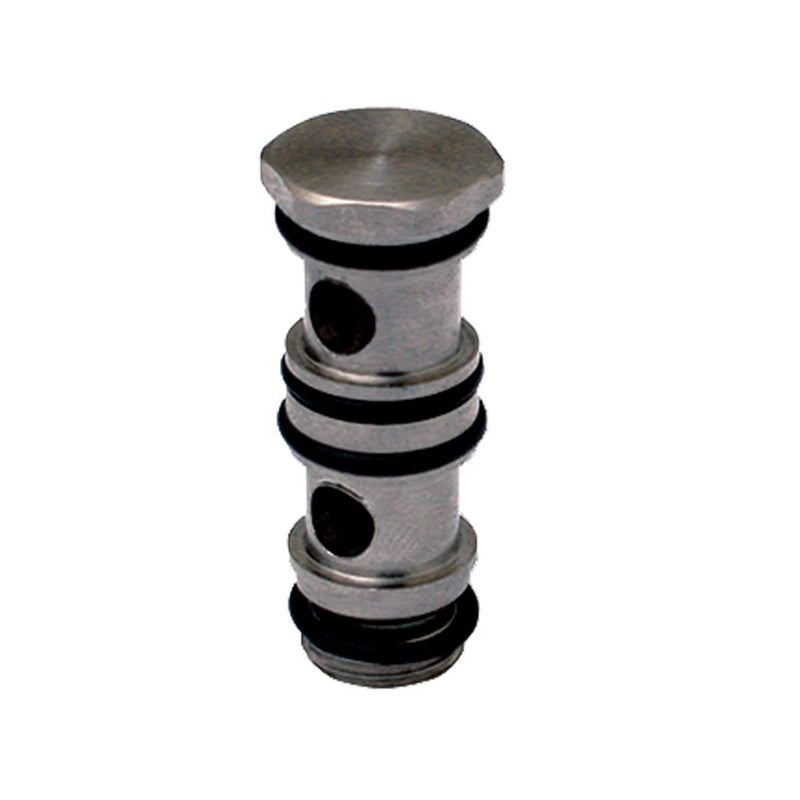

68BJBD-M5 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Modular Fitting | M5X0.8 Male M5 Double Banjo Bolt | N/A Hex | 24.5mm Height (H) | Brass | Pack of 10

68BJBD-M5 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Modular Fitting | M5X0.8 Male M5 Double Banjo Bolt | N/A Hex | 24.5mm Height (H) | Brass | Pack of 10

Save $14.48 Save $14.48
$101.68
$101.68 - $101.68
$101.68
$87.20
$87.20 - $87.20
$87.20

by Parker Hannifin
Push-to-Connect Fittings:68BJBD Double Banjo Bolt

Package Quantity: 10 Units

Specifications for Variant SKU: 68BJBD-M5 Parker | 10 |
Series: 68BJBD Series
Shape (Orientation): No Orientation
Material(s): Brass
Special Properties: Corrosion Resistance, Chemical Resistance, Silicone Free
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Pneumatic
  • Industrial
  • Robotic
  • Automation
  • Printing
  • Packaging
  • Textile
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 290 PSI (19.9 bar) depending on tubing
Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range: -4° to +175° F (-20° to +79.4° C)
5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • Fluoropolymer
  • Polyethylene
Part Number BSPP / M5 Hex (C) H H1 H2
68BJBD-M5* M5X0.8 - 24.5 mm 7.5 mm 18.5 mm
68BJBD-2G 1/8" 13 mm 31.0 mm 7.5 mm 22.0 mm
68BJBD-4G 1/4" 17 mm 39.0 mm 9.5 mm 27.5 mm
68BJBD-6G 3/8" 20 mm 46.0 mm 11.0 mm 32.5 mm
