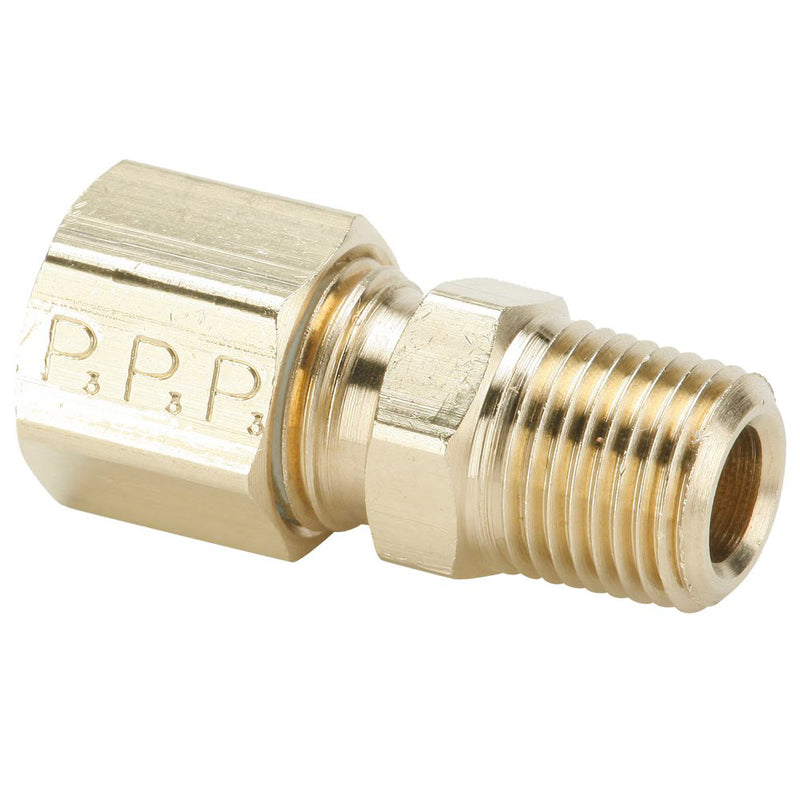

68C-5-4 by Parker | Compression Fitting | 5/16" Tube Size Connector x 1/4" Male Pipe Thread x 1/2" Thread | 9/16" Hex | 1.33" Length | Straight | Brass | Pack of 25

68C-5-4 by Parker | Compression Fitting | 5/16" Tube Size Connector x 1/4" Male Pipe Thread x 1/2" Thread | 9/16" Hex | 1.33" Length | Straight | Brass | Pack of 25

Save $17.16 Save $17.16
$110.49
$110.49 - $110.49
$110.49
$93.33
$93.33 - $93.33
$93.33

by Parker Hannifin
Compression Fittings:Male Connector 68C

Package Quantity: 25 Units

Specifications for Variant SKU: 68C-5-4 Parker | 25 |
Series: 68C Series
Shape (Orientation): Straight
Material(s): Brass
Special Properties: UL Listed
Product Features:
  • Meets functional requirements of SAE J-512
  • UL Listed for flammable liquid
  • Brass or acetal sleeve available
  • No tube preparation
  • Forged and extruded shapes
Markets:
  • Industrial
  • Packaging
  • Pneumatic
  • Printing
Applications:
  • Air lines
  • Lubrication Lines
  • Cooling lines
  • Industry
  • Machinery
  • Compressors
  • Fluid transfer
Specification:
Pressure Range: See Chart Below
Temperature Range: -65° to +250° F (- 53.8° to +121.1° C)
Compatible Tubing:
  • Copper
  • Aluminum
  • Thermoplastic tubing
Part Number Tube Size Pipe Thread Straight Thread Hex (C) L M Flow Diameter (D)
68C-2-1 1/8" 1/16" 5/16"-24 3/8" .99" .78" .095"
68C-2-2 1/8" 1/8" 7/16"-24 7/16" .97" .77" .094"
68C-3-1 3/16" 1/16" 3/8"-24 3/8" 1.08" .84" .125"
68C-3-2 3/16" 1/8" 3/8"-24 7/16" 1.08" .84" .125"
68C-3-4 3/16" 1/4" 3/8"-24 9/16" 1.27" 1.03" .125"
68C-4-2 1/4" 1/8" 7/16"-24 7/16" 1.10" .86" .188"
68C-4-4 1/4" 1/4" 7/16"-24 9/16" 1.30" 1.06" .188"
68C-4-6 1/4" 3/8" 7/16"-24 11/16" 1.27" 1.03" .188"
68C-4-8 1/4" 1/2" 7/16"-24 7/8" 1.55" 1.31" .188"
68C-5-2 5/16" 1/8" 1/2"-24 1/2" 1.15" .89" .234"
68C-5-4 5/16" 1/4" 1/2"-24 9/16" 1.33" 1.07" .250"
68C-6-2 3/8" 1/8" 9/16"-24 9/16" 1.25" .97" .250"
68C-6-4 3/8" 1/4" 9/16"-24 9/16" 1.42" 1.14" .312"
68C-6-6 3/8" 3/8" 9/16"-24 11/8" 1.44" .78" .095"
68C-6-8 3/8" 1/2" 9/16"-24 7/8" 1.53" 1.25" .312"
68C-7-4 7/16" 1/4" 5/8"-24 5/8" 1.50" 1.17" .312"
68C-8-4 1/2" 1/4" 11/16"-20 11/16" 1.60" 1.20" .312"
68C-8-6 1/2" 3/8" 11/16"-20 11/16" 1.60" 1.20" .406"
68C-8-8 1/2" 1/2" 11/16"-20 7/8" 1.71" 1.31" .406"
68C-10-6 5/8" 3/8" 13/16"-18 13/16" 1.73" 1.31" .406"
68C-10-8 5/8" 1/2" 13/16"-18 7/8" 1.90" 1.48" .500"
68C-10-12 5/8" 3/4" 13/16"-18 1-1/16" 1.98" 1.56" .500"
68C-12-8 3/4" 1/2" 1"-18 1" 2.05" 1.60" .562"
68C-12-12 3/4" 3/4" 1"-18 1-1/16" 2.08" 1.63" .656"
68C-14-12 7/8" 3/4" 1-1/8"-18 1-1/8" 1.76" 1.41" .750"
