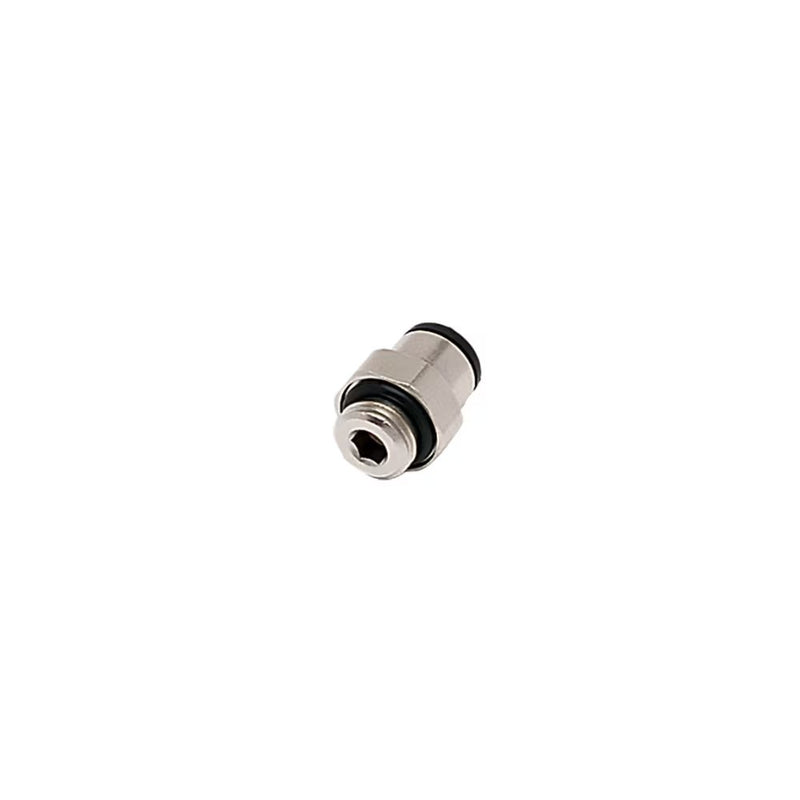

68LF-6M-M10 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Threaded Fitting | 6mm Connector x M10X1 Male M10 Thread | 18mm Length | 14mm Width | Straight | Brass | Pack of 10

Save $13.63

$89.76

$89.76 - $89.76

$89.76

$76.13

$76.13 - $76.13

$76.13

by Parker Hannifin
Push-to-Connect Fittings:68LF Male Connector Metric to BSPP

Package Quantity: 10 Units

Specifications for Variant SKU: 68LF-6M-M10 Parker \| 10 \|
Series:	68LF Series
Shape (Orientation):	Straight
Material(s):	Brass, Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Corrosion Resistance, Chemical Resistance, Silicone Free

Product Features:	Stainless steel grab ring Glass-reinforced nylon 6.6 body Nitrile D-seal Nylon release button Corrosion and chemical resistance NPT, BSPT, BSPP, and metric threads Silicone Free
Markets:	Pneumatic Industrial Robotic Automation Printing Packaging Textile
Compatible Media:	Compressed Air Inert Gases Vacuum
Pressure Range:	Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range:	-4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating:	28" Hg
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A* Nylon Fluoropolymer Polyethylene


Part Number	Tube Size	BSPP (C)	E	F1	F2	H	K
68LF-3M-M5	3 mm	M5X0.8	3.50 mm	8 mm	2.5	12.5	8.5 mm
68LF-4M-M3	4 mm	M3X0.5	2.50 mm	8 mm	-	14.5	8.5 mm
68LF-4M-M5	4 mm	M5X0.8	3.50 mm	8 mm	2.5	14.0	8.5 mm
68LF-4M-M7	4 mm	M7X1	5.00 mm	10 mm	2.5	14.0	11.0 mm
68LF-4M-2G	4 mm	1/8"	4.50 mm	13 mm	3.0	11.5	14.0 mm
68LF-4M-4G	4 mm	1/4"	5.50 mm	16 mm	3.0	10.5	17.0 mm
68LF-6M-M5	6 mm	M5X0.8	3.50 mm	10 mm	2.5	16.0	11.0 mm
68LF-6M-M7	6 mm	M7X1	5.00 mm	10 mm	3.0	16.0	11.0 mm
68LF-6M-M10	6 mm	M10X1	5.00 mm	13 mm	4.0	13.0	14.0 mm
68LF-6M-M12	6 mm	M12X1.5	5.50 mm	15 mm	4.0	13.0	16.0 mm
68LF-6M-2G	6 mm	1/8"	4.50 mm	13 mm	4.0	12.5	14.0 mm
68LF-6M-4G	6 mm	1/4"	5.50 mm	16 mm	4.0	12.5	17.5 mm
68LF-6M-6G	6 mm	3/8"	5.50 mm	20 mm	4.0	13.0	22.0 mm
68LF-6M-8G	6 mm	1/2"	7.50 mm	24 mm	4.0	20.0	26.0 mm
68LF-8M-M10	8 mm	M10X1	5.00 mm	13 mm	5.0	21.0	14.0 mm
68LF-8M-M12	8 mm	M12X1.5	5.00 mm	15 mm	5.0	21.0	16.0 mm
68LF-8M-2G	8 mm	1/8"	4.50 mm	13 mm	5.0	20.5	14.0 mm
68LF-8M-4G	8 mm	1/4"	5.50 mm	16 mm	6.0	19.5	17.5 mm
68LF-8M-6G	8 mm	3/8"	5.50 mm	20 mm	6.0	18.0	22.0 mm
68LF-8M-8G	8 mm	1/2"	7.50 mm	24 mm	6.0	16.5	26.0 mm
68LF-10M-4G	10 mm	1/4"	5.50 mm	16 mm	7.0	23.0	17.5 mm
68LF-10M-6G	10 mm	3/8"	5.50 mm	20 mm	8.0	19.5	22.0 mm
68LF-10M-8G	10 mm	1/2"	7.50 mm	24 mm	8.0	18.5	26.0 mm
68LF-12M-4G	12 mm	1/4"	5.50 mm	19 mm	7.0	27.5	21.0 mm
68LF-12M-6G	12 mm	3/8"	5.50 mm	20 mm	9.0	27.0	22.0 mm
68LF-12M-8G	12 mm	1/2"	7.00 mm	24 mm	10.0	22.5	26.0 mm
68LF-14M-6G	14 mm	3/8"	5.50 mm	22 mm	9.0	29.5	24.0 mm
68LF-14M-8G	14 mm	1/2"	7.00 mm	24 mm	11.0	28.0	26.0 mm
