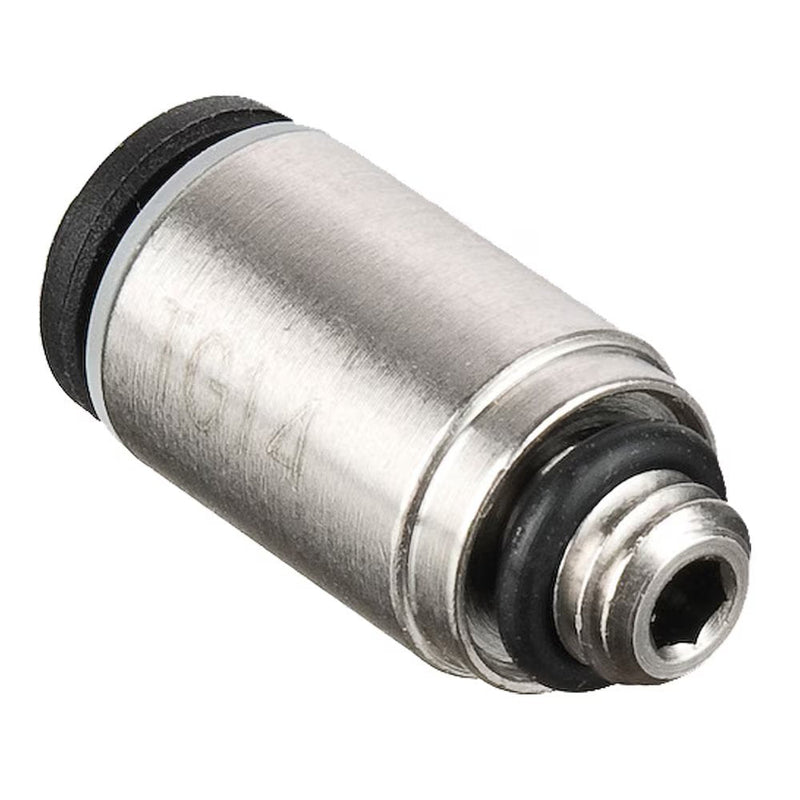

68LFR-4-M7 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Threaded Fittings | 1/4" Connector x M7 Male UNF Thread | .41 Width | Straight | Brass | Pack of 10

68LFR-4-M7 by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Threaded Fittings | 1/4" Connector x M7 Male UNF Thread | .41 Width | Straight | Brass | Pack of 10

Minimum Order Quantity: 5 Units

Save $47.93 Save $47.93
$119.83
$119.83 - $119.83
$119.83
$71.90
$71.90 - $71.90
$71.90

by Parker Hannifin
Push-to-Connect Fittings:68LFR Male Connector – UNF

Package Quantity: 10 Units

Specifications for Variant SKU: 68LFR-4-M7 Parker | 10 |
Series: 68LFR Series
Shape (Orientation): Straight
Material(s): Brass, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Corrosion Resistance, Chemical Resistance, Silicone Free
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Pneumatic
  • Industrial
  • Robotic
  • Automation
  • Printing
  • Packaging
  • Textile
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 290 PSI (19.9 bar) depending on tubing
Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range: -4° to +175° F (-20° to +79.4° C)
5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • Fluoropolymer
  • Polyethylene
Part Number Tube Size UNF (C) E F H K
68LFR-2-0 1/8" 10-32" .13" 2.0 mm .49" .32"
68LFR-4M-0 5/32" 10-32" .13" 2.0 mm .54" .34"
68LFR-4-0 1/4" 10-32" .13" 2.0 mm .64" .46"
68LFR-4-M5 1/4" M5 .14" 2.5 mm .65" .41"
68LFR-4-M7 1/4" M7 .18" 4.0 mm .65" .41"
