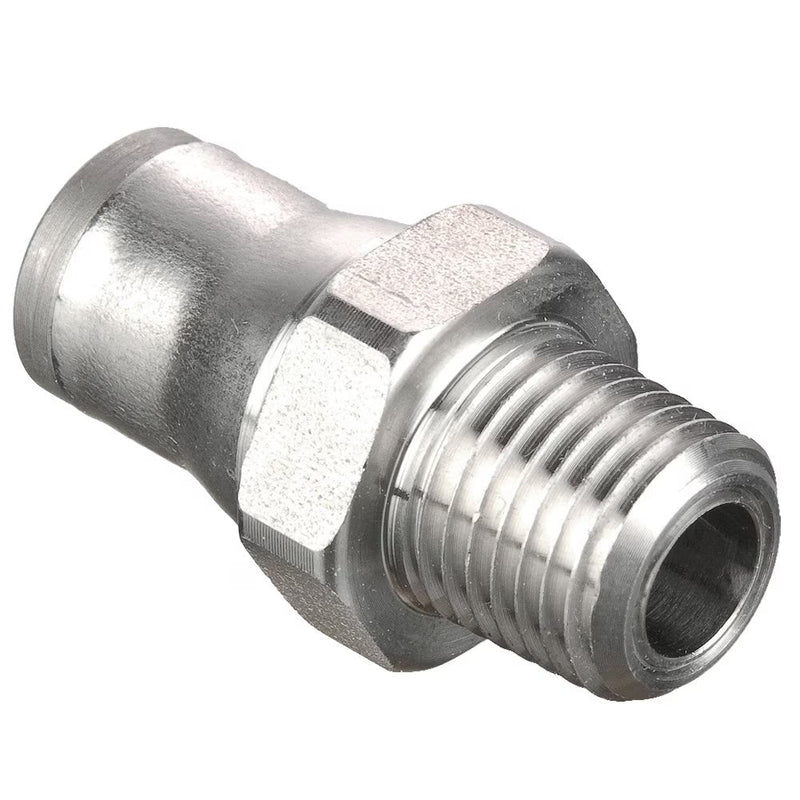

68PLS-4-2 by Parker | Prestolok PLS Push-to-Connect Fittings | Threaded Fitting | 1/4" Connector x 1/8" Male NPT Threads | 13 mm Height | 13 mm Width | Straight | Stainless Steel | Pack of 10

68PLS-4-2 by Parker | Prestolok PLS Push-to-Connect Fittings | Threaded Fitting | 1/4" Connector x 1/8" Male NPT Threads | 13mm Height | 13mm Width | Straight | Stainless Steel | Pack of 10

Save $68.03 Save $68.03
$628.70
$628.70 - $628.70
$628.70
$560.67
$560.67 - $560.67
$560.67

by Parker Hannifin
Prestolok PLS Stainless Steel Push-to-Connect Fittings:68PLS Male Connector - Inch Tube to NPT,UNF

Package Quantity: 10 Units

Specifications for Variant SKU: 68PLS-4-2 Parker | 10 |
Series: 68PLS Series
Shape (Orientation): Straight
Material(s): Stainless Steel
Special Properties: Food Grade, Corrosion Resistance, Chemical Resistance, Abrasion Resistance, Silicone Free
Product Features:
  • Stainless steel 316L collet
  • Stainless steel 316L body
  • FKM seal
  • Stainless steel 316L backup washer
  • Chemical, corrosion, and abrasion resistance
  • Hygienic design reduces retention zones for
  • Easy cleaning
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Petrochemical
  • Life Science
  • Pulp and Paper
  • Food Processing
  • Wash Down
Compatible Media:
  • Food Fluids
  • Chemicals
  • Cleaning Agents
  • Compressed Air
  • Inert Gases
Pressure Range: Up to 435 psi (30 bar)
290 psi (19.9 bar) for 169PLS
Vacuum Rating: 28" Hg
Temperature Range: -13° to +302° F (-25° to +150° C)
Compatible Tubing:
  • Semi-rigid nylon
  • Polyethylene
  • Polyurethane 95 Durometer Shore A
  • Stainless Steel (grooved)
  • Copper (grooved)
  • FEP
Part Number Tube Size NPT / UNF F F1 H K
68PLS-4-2 1/4" 1/8" 13 mm 4.0 mm .59" .43"
68PLS-4-4 1/4" 1/4" 14 mm 4.0 mm .69" .59"
68PLS-6-4 3/8" 1/4" 19 mm 6.0 mm .98" .83"
68PLS-6-6 3/8" 3/8" 19 mm 7.0 mm .94" .83"
68PLS-8-4 1/2" 1/4" 22 mm 7.0 mm 1.02" .94"
68PLS-8-6 1/2" 3/8" 22 mm 8.0 mm .98" .94"
68PLS-8-8 1/2" 1/2" 22 mm 10.0 mm .98" .94"
