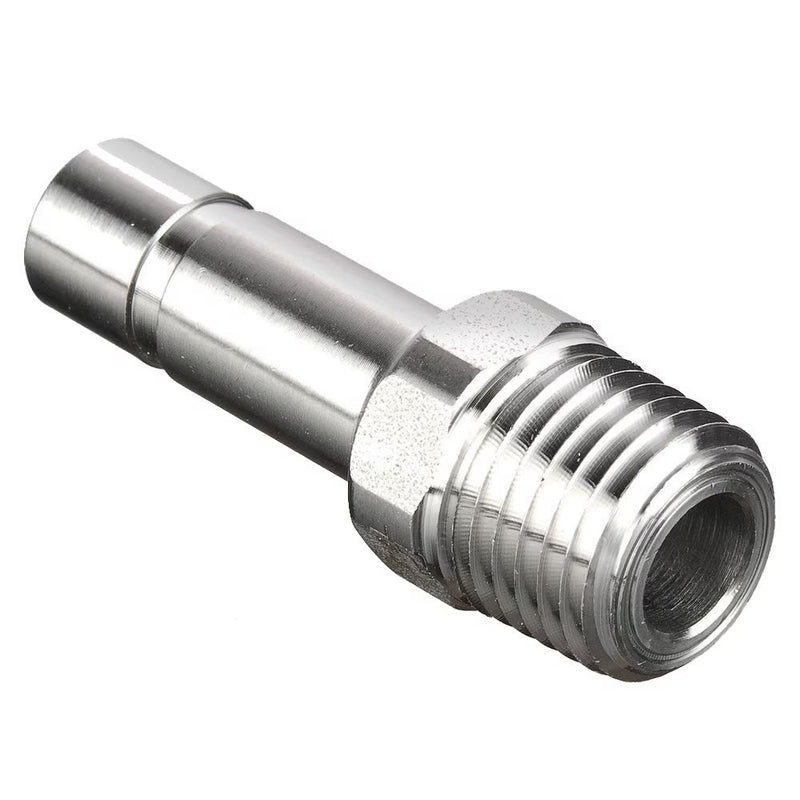

68PLSSP-12M-8R by Parker | Prestolok PLS Push-to-Connect Fittings | 12 mm Standpipe x 1/2" Male BSPT Threads | 22 mm Height | 22 mm Width | Straight | Stainless Steel | Pack of 2

68PLSSP-12M-8R by Parker | Prestolok PLS Push-to-Connect Fittings | 12 mm Standpipe x 1/2" Male BSPT Threads | 22 mm Height | 22 mm Width | Straight | Stainless Steel | Pack of 2

Save $118.06 Save $118.06
$295.15
$295.15 - $295.15
$295.15
$177.09
$177.09 - $177.09
$177.09

by Parker Hannifin
Prestolok PLS Stainless Steel Push-to-Connect Fittings:68PLSSP Male Standpipe - Metric Tube to BSPT

Package Quantity: 2 Units

Specifications for Variant SKU: 68PLSSP-12M-8R Parker | 2 |
Series: 68PLSSP Series
Shape (Orientation): Straight
Material(s): Stainless Steel
Special Properties: Food Grade, Corrosion Resistance, Chemical Resistance, Abrasion Resistance, Silicone Free
Product Features:
  • Stainless steel 316L collet
  • Stainless steel 316L body
  • FKM seal
  • Stainless steel 316L backup washer
  • Chemical, corrosion, and abrasion resistance
  • Hygienic design reduces retention zones for
  • Easy cleaning
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Petrochemical
  • Life Science
  • Pulp and Paper
  • Food Processing
  • Wash Down
Compatible Media:
  • Food Fluids
  • Chemicals
  • Cleaning Agents
  • Compressed Air
  • Inert Gases
Pressure Range: Up to 435 psi (30 bar)
290 psi (19.9 bar) for 169PLS
Vacuum Rating: 28" Hg
Temperature Range: -13° to +302° F (-25° to +150° C)
Compatible Tubing:
  • Semi-rigid nylon
  • Polyethylene
  • Polyurethane 95 Durometer Shore A
  • Stainless Steel (grooved)
  • Copper (grooved)
  • FEP
Part Number Tube Size BSPT F H
68PLSSP-4M-2R 4 mm 1/8" 10 mm 21 mm
68PLSSP-6M-2R 6 mm 1/8" 10 mm 23 mm
68PLSSP-6M-4R 6 mm 1/4" 14 mm 24 mm
68PLSSP-8M-2R 8 mm 1/8" 10 mm 24 mm
68PLSSP-8M-4R 8 mm 1/4" 14 mm 25 mm
68PLSSP-10M-4R 10 mm 1/4" 14 mm 30 mm
68PLSSP-10M-6R 10 mm 3/8" 17 mm 30 mm
68PLSSP-12M-4R 12 mm 1/4" 14 mm 31 mm
68PLSSP-12M-6R 12 mm 3/8" 17 mm 31 mm
68PLSSP-12M-8R 12 mm 1/2" 22 mm 32 mm
