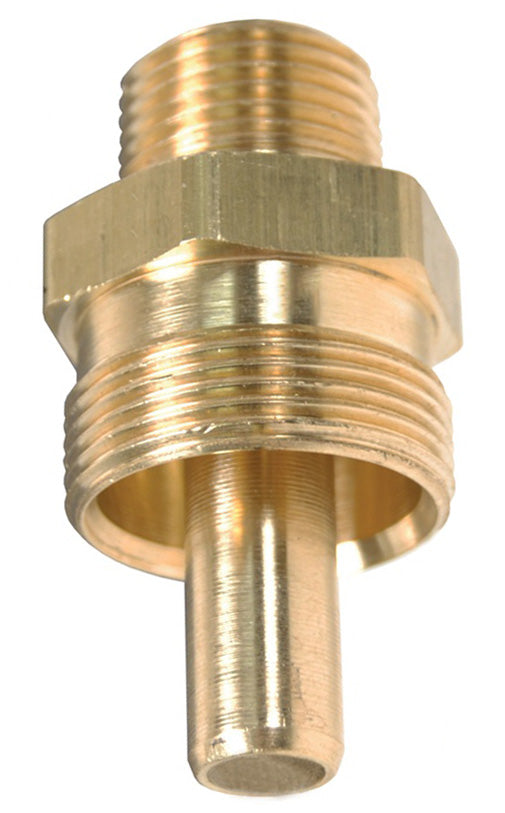

68RB-0608B by Dixon Valve | Air Brake Fitting for Rubber Hose | Male Connector | 1/2" Male NPT x 3/8" Tube OD | Brass Alloy 360

68RB-0608B by Dixon Valve | Air Brake Fitting for Rubber Hose | Male Connector | 1/2" Male NPT x 3/8" Tube OD | Brass Alloy 360

Save $0.48 Save $0.48
$5.73
$5.73 - $5.73
$5.73
$5.25
$5.25 - $5.25
$5.25

Dixon Valve & Coupling
Air Brake Fitting for Rubber Hose | Male Connector

For use with SAEJ1402 air brake hose in making hose assemblies
Specifications for Variant SKU: 68RB-0608B Dixon
Shape (Orientation): Straight
Material(s): Brass
Use:
  • Recommended tubing: Polyethylene, Polyurethane 95A Durometer.
Features:
  • Utilize ribbed sleeve for compression and positive grip.
Construction:
  • Brass Alloy 360
Specifications:
  • Working pressure: up to 225 PSI
  • Temperature: -50°F to 212°F (-46° to 100°C)
Approvals:
  • Will meet D.O.T. FMVSS 571-106 standards when used with SAE J1402 air brake hose.
Assembly Instructions:
  • 1. Slide nut onto hose.
  • 2. Slide sleeve onto hose with tapered edge toward fitting body.
  • 3. Firmly bottom the hose into fittings.
  • 4. Screw nut onto body until it contacts the fittings body's hex.
Part Number Tube O.D. Pipe Thread Straight
Thread		 Hex
68RB-0604B 3/8" 1/4" 31/32"-20 31/32"
68RB-0606B 3/8" 3/8" 31/32"-20 31/32"
68RB-0608B 3/8" 1/2" 31/32"-20 31/32"
68RB-0806B 1/2" 3/8" 1-3/32"-20 1-1/8"
68RB-0808B 1/2" 1/2" 1-3/32"-20 1-1/8"
