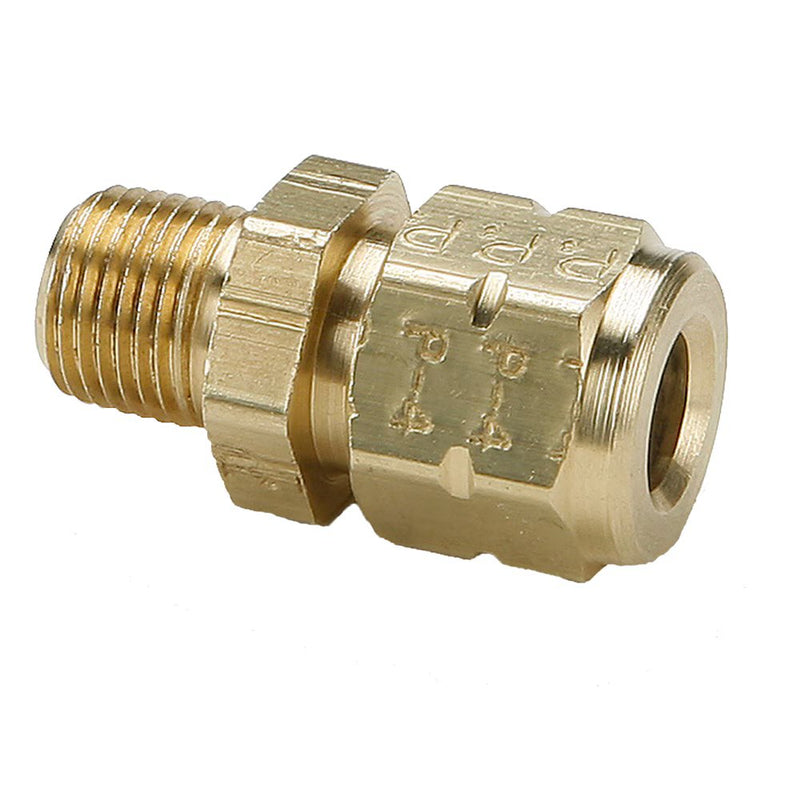

68VL-6-2 by Parker | Vibra-Lok Fittings | 3/8" Tube Size Connector x 1/8" Male Pipe Thread | 11/16" Hex | 1.22" Length | Straight | Brass | Pack of 50

68VL-6-2 by Parker | Vibra-Lok Fittings | 3/8" Tube Size Connector x 1/8" Male Pipe Thread | 11/16" Hex | 1.22" Length | Straight | Brass | Pack of 50

Save $78.31 Save $78.31
$861.36
$861.36 - $861.36
$861.36
$783.05
$783.05 - $783.05
$783.05

by Parker Hannifin
Vibra-Lok Fittings:Male Connector 68VL

Package Quantity: 50 Units

Specifications for Variant SKU: 68VL-6-2 Parker | 50 |
Brand: Vibra-Lok
Series: 68VL Series
Shape (Orientation): Straight
Material(s): Brass
Special Properties: Fuel Grade, Vibration Resistance
Product Features:
  • Brass Body
  • Sleeves in Buna N and Fluorocarbon
  • NPTF and SAE J1926 Straight Threads are Standard
  • Excellent Vibration Resistance
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Oil
  • Fuel
  • Coolant Lines on engines
Specification:
Pressure Range: Dependent on condition and tube size, refer to pressure chart
Temperature Range: -15° to +450° F (-26.1° to +232.2° C) with Fluorocarbon Sleeve
-30° to +275° F (-34.4° to +135° C) with Buna N Sleeve
Compatible Tubing:
  • Copper
  • Aluminum
  • Steel (Bundy)
  • Stainless Steel
  • Glass
Part Number Tube Size Pipe Thread Hex (C) L M Flow Diameter (D)
68VL-2-2 1/8" 1/8" 7/16" 1.12" .81" .093"
68VL-3-2 3/16" 1/8" 1/2" 1.10" .81" .125"
68VL-4-2 1/4" 1/8" 9/16" 1.15" .84" .188"
68VL-4-4 1/4" 1/4" 9/16" 1.34" 1.03" .188"
68VL-5-4 5/16" 1/4" 5/8" 1.41" 1.06" .250"
68VL-6-2 3/8" 1/8" 11/16" 1.22" .87" .235"
68VL-6-4 3/8" 1/4" 11/16" 1.41" 1.06" .312"
68VL-6-6 3/8" 3/8" 11/16" 1.41" 1.06" .312"
68VL-8-6 1/2" 3/8" 7/8" 1.64" 1.16" .406"
68VL-8-8 1/2" 1/2" 7/8" 1.64" 1.35" .406"
68VL-10-8 5/8" 1/2" 1-1/16" 2.10" 1.44" .560"
68VL-12-8 3/4" 1/2" 1-3/16" 2.26" 1.50" .530"
68VL-12-12 3/4" 3/4" 1-3/16" 2.26" 1.50" .688"
Parker Fluid System Connectors Division

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
