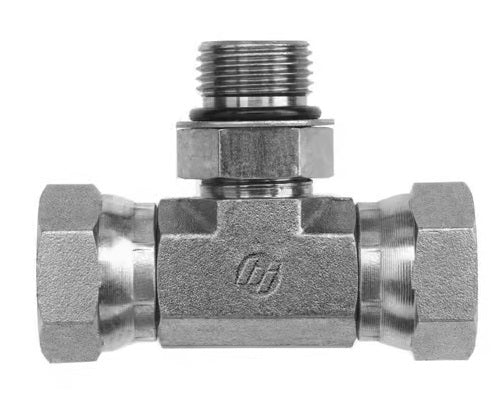

6911-10-12-12-NWO-FG by Brennan Inc. | -10 Male Adjustable O-Ring Boss x -12 Female Pipe Swivel x -12 Female Pipe Swivel | Forged Steel

6911-10-12-12-NWO-FG by Brennan Inc. | -10 Male Adjustable O-Ring Boss x -12 Female Pipe Swivel x -12 Female Pipe Swivel | Forged Steel

Save $20.83 Save $20.83
$52.08
$52.08 - $52.08
$52.08
$31.25
$31.25 - $31.25
$31.25

Brennan Inc.
Tube Fittings & Adapters: 6911-NWO - Male Adjustable O-Ring Boss x Female Pipe Swivel x Female Pipe Swivel Tee
Specifications for Variant SKU: 6911-10-12-12-NWO-FG Brennan
Ends Configuration: 5/8in Male O-Ring Boss, 3/4in Female NPSM, 3/4in Female NPSM
Material(s): Steel
Part Number Material Tube
O.D.		 A
SAE
ORB		 B
NPSM		 B
NPSM		 A
Drill		 B
Drill		 B
Drill		 L1
Length		 L2
Length		 L3
Length		 C
Hex		 C1
Hex		 Y
Flats
6911-08-08-08-NWO-FG Forged Steel 1/2" 3/4-16" 1/2-14" 1/2-14" 0.391" 0.440" 0.440" 1.450" 1.110" 1.390" 0.875" 1.000" 0.875"
6911-10-12-12-NWO-FG Forged Steel 5/8" 7/8-14" 3/4-14" 3/4-14" 0.484" 0.610" 0.610" 1.780" 1.300" 1.650" 1.000" 1.250" 1.062"
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
