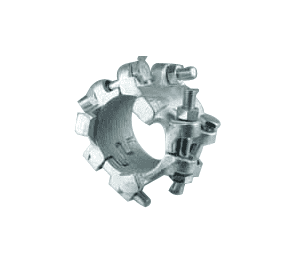

6BC401 by Jason Industrial | 6 Bolt Interlocking Clamp | OD Range: 4-7/8" to 5-5/16"

6BC401 by Jason Industrial | 6 Bolt Interlocking Clamp | OD Range: 4-7/8" to 5-5/16"

Save $60.42 Save $60.42
$211.46
$211.46 - $211.46
$211.46
$151.04
$151.04 - $151.04
$151.04

Jason Industrial Inc. Couplings & Accessories - Interlocking Clamps - 2, 4, 6 Bolt
Specifications for Variant SKU: 6BC401 Jason
Material(s): Carbon Steel
Minimum Clamp I.D.: 4.875
Maximum Clamp I.D.: 5.3125
Overview:
  • These clamps are used on any fitting with a collar to engage the forward gripping fingers of the interlocking clamp. However, they are most commonly used on ground joint females and male collared nipples. Smaller sizes provide a safe and economical securing method for universal hose ends. The forward gripping fingers engage the collar preventing the shank or stem from pulling out. Tightening the bolts secures the clamp around the O.D. of the hose.
Safety Warnings:
  • Please do not mix Jason Industrial couplings with other products.
Part Number OD Range Number of Bolts Torque Ref. No.
From To
in. Decimal in. Decimal lbs./ft
2BS038 11/16" 0.69" 3/4" 0.75" 2 6 lbs./ft CD
2BC050 15/16" 0.94" 1-1/16" 1.06" 2 12 lbs./ft B4
2BS050 1" 1.00" 1-1/8" 1.13" 2 12 lbs./ft A4
2BC051 1-1/16" 1.06" 1-3/16" 1.19" 2 12 lbs./ft B5
2BS075 1-1/8" 1.13" 1-5/16" 1.31" 2 21 lbs./ft A9
2BC075 1-3/16" 1.19" 1-5/16" 1.31" 2 21 lbs./ft BU9
2BC076 1-5/16" 1.31" 1-1/2" 1.50" 2 21 lbs./ft B9
2BC077 1-1/2" 1.50" 1-11/16" 1.69" 2 21 lbs./ft B10
4BC100 1-17/32" 1.53" 1-23/32" 1.72" 4 21 lbs./ft BU14
4BC100A 1-13/32" 1.41" 1-9/16" 1.56" 4 21 lbs./ft 156
4BC101 1-5/8" 1.63" 1-27/32" 1.84" 4 21 lbs./ft ---
4BC102 1-7/8" 1.88" 2-1/16" 2.06" 4 21 lbs./ft B15
4BC125 2-1/16" 2.06" 2-1/4" 2.25" 4 40 lbs./ft B19
4BC150 2-3/32" 2.09" 2-9/32" 2.28" 4 40 lbs./ft BU24
4BC151 2-1/4" 2.25" 2-7/16" 2.44" 4 40 lbs./ft B24
4BC152 2-15/32" 2.47" 2-23/32" 2.72" 4 40 lbs./ft ---
4BC200 2-1/2" 2.50" 2-25/32" 2.78" 4 60 lbs./ft BU29
4BC201 2-3/4" 2.75" 3-1/16" 3.06" 4 60 lbs./ft 306
4BC202 3-3/32" 3.09" 3-7/16" 3.44" 4 60 lbs./ft B30
4BC250 3-1/2" 3.50" 3-15/16" 3.94" 4 150 lbs./ft B34
4BC300 3-13/16" 3.81" 4-3/16" 4.19" 4 150 lbs./ft B35
4BC301 4-1/16" 4.06" 4-7/16" 4.44" 4 200 lbs./ft B39
6BC400 4-1/4" 4.25" 4-13/16" 4.81" 6 150 lbs./ft BS39
6BC401 4-7/8" 4.88" 5-5/16" 5.31" 6 150 lbs./ft ---
6BC402 5-1/4" 5.25" 5-19/32" 5.59" 6 150 lbs./ft ---
Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
