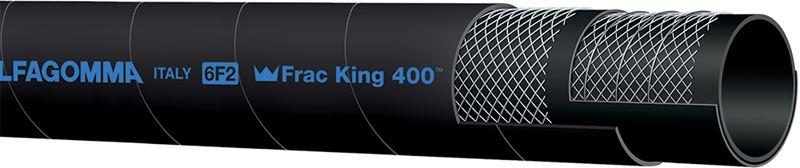

6F2AA400X100 Alfagomma by Kuriyama | FRAC KING™ 400 | 6F2AA Series | High Performance Frac Fluid Hose | 4" ID | 4.96" OD | 400 PSI | Black | 100ft Length

6F2AA400X100 Alfagomma by Kuriyama | FRAC KING™ 400 | 6F2AA Series | High Performance Frac Fluid Hose | 4" ID | 4.96" OD | 400 PSI | Black | 100ft Length

Save $903.45 Save $903.45
$3,396.62
$3,396.62 - $3,396.62
$3,396.62
$2,493.17
$2,493.17 - $2,493.17
$2,493.17

Kuriyama of America Inc.
Alfagomma | FRAC KING™ 400 | 6F2AA Series | High Performance Frac Fluid Hose

A durable and versatile hose for a variety of oil and gas field applications involving hydraulic frac fluids, abrasive slurries, wastewater, lubricants, water / sand and other high pressure solutions; as well as simulation fluids used in the well drilling process.

Package Quantity: 100 Foot

Specifications for Variant SKU: 6F2AA400X100 Kuriyama | 100 |
Brand: Alfagomma
Series: FRAC KING 400, 6F2AA Series
Hose Color(s): Black
Internal Diameter: 4in
Outer Diameter: 4.96in
Tubing Construction: Nitrile
Cover Construction: SBR
Special Properties: Conductive Tube

SPECIFICATIONS

Applications: Hydraulic frac fluids, abrasive slurries, wastewater, lubricants, water / sand and other high pressure solutions; as well as simulation fluids used in the well drilling process.
Other Ratings: Oil Resistance: ARPM Class A Tube: Conductive nitrile (NBR) meeting ARPM Class A (high oil resistance) rating.
Reinforcement: Helical wire surrounded by textile cords. Cover: Highly abrasive-resistant SBR compound for abrasion and ozone resistance.
Service Temperature Range: -40°F (-40°C) to +180°F (+82°C) Coupling Suggestions: Tubular steel full flow male permanently swaged or internally expanded with ferrule to provide maximum hose coupling compatibility.
Branding: ALFAGOMMA - ITALY 6F2 Frac King 400 27 bar (400 psi) FRAC S&D (in blue letters)
Other Features:
  • Heavy Duty Construction - Heavy duty hose with highly abrasive-resistant cover for tough environments.
  • Lightweight - For easy handling and maneuvering in frac field applications.
  • Easy Assembly - Coupling slides in easier than competitive products.
  • Vacuum Capabilities - Full vacuum rating.
Part Number
100ft		 ID OD Max Rec.
Working Pressure*		 Vacuum Min. Bend
Radius
at 68°F		 Weight
(in) (mm) (in) (mm) PSI in Hg (in) (lbs/ft)
6F2AA400X100 4" 102mm 4.96" 126mm 400 PSI 30 in Hg 20" 4.07 lbs/pc

* 4-to-1 safety factor.
