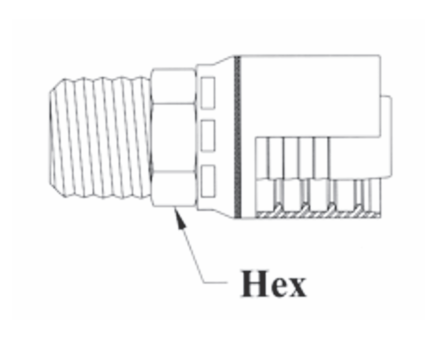

6GC01-16x16 Couplamatic Grip Crimp 6GC Series Coupling - NPTF - Male Solid - 1" Hose ID - 1-11-1/2 Thread Size

6GC01-16x16 by Couplamatic | Grip Crimp 6GC Series Coupling | 1" Hose ID x 1-11-1/2 Thread Size NPTF Male Solid | Straight | Trivalent Zinc Plating

Save $2.91 Save $2.91
$26.17
$26.17 - $26.17
$26.17
$23.26
$23.26 - $23.26
$23.26

Couplamatic Systems Inc.
Grip Crimp 6GC Series - 4SH, R13, R15 No-Skive Couplings - NPTF - Male Solid
Specifications for Variant SKU: 6GC01-16x16 Couplamatic
Series: 6GC Series
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Male NPTF, 1in Hose Barb
Material(s): Steel
Compatible with the following Series: RC13 Series  |   DHEXR13 Series  |   RC15 Series  |   4SH Series
Description:
  • The 6GC Series Six Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully.
  • Trivalent Zinc Plating
    		•
    Part Number Hose ID Pipe Size Thread Size Hex Size Cross Reference Part Numbers
    Parker 78
    6GC01-12x12 3/4" 3/4" 3/4-14 1-1/8" 10178-12-12
    6GC01-16x16 1" 1" 1-11-1/2 1-3/8" 10178-16-16
    6GC01-20x20 1-1/4" 1-1/4" 1-1/4-11-1/2 1-11/16" 10178-20-20
    6GC01-24x24 1-1/2" 1-1/2" 1-1/2-11-1/2 2" 10178-24-24
    6GC01-32x32 2" 2" 2-11-1/2 2-1/2" 101S6-32-32

    The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
