6GC10-10x10 Couplamatic Grip Crimp 6GC Series Coupling - BSPP - British Standard Parallel 60° Cone - Female Swivel - 5/8" Hose ID - G-5/8-14 Thread Size - 5/8" BSPP size

6GC10-10x10 by Couplamatic | Grip Crimp 6GC Series Coupling | 5/8" Hose ID x G-5/8-14 Thread Size Female 60° Cone Swivel | 5/8" BSPP size | Straight | Trivalent Zinc Plating

Save $1.92 Save $1.92
$19.16
$19.16 - $19.16
$19.16
$17.24
$17.24 - $17.24
$17.24

Couplamatic Systems Inc.
Grip Crimp 6GC Series - 4SH, R13, R15 No-Skive Couplings - BSPP - British Standard Parallel 60° Cone - Female Swivel
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 6GC10-10x10 Couplamatic
Series: 6GC Series
Shape (Orientation): Straight
Ends Configuration: 5/8in Female BSPP, 5/8in Hose Barb
Material(s): Steel
Compatible with the following Series: RC13 Series  |   DHEXR13 Series  |   RC15 Series  |   4SH Series
Description:
  • G. as part of thread size is ISO designation for parallel thread.
  • The 6GC Series Six Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully.
  • Trivalent Zinc Plating
    		•

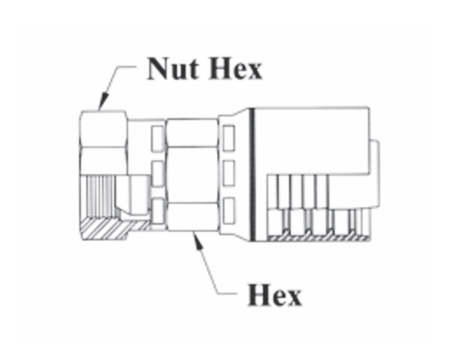

    Part Number Hose ID BSPP Size Thread Size Hex Size Nut Hex
    6GC10-10x10 5/8" 5/8" G-5/8-14 15/16" 1-3/16"
    6GC10-12x12 3/4" 3/4" G-3/4-14 1-1/8" 1-1/4"
    6GC10-16x16 1" 1" G-1-11 1-3/8" 1-1/2"
